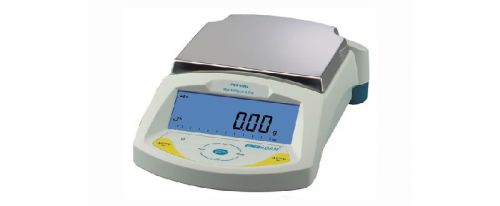

PGW Series 2 Balances

The PGW series of Balances are designed to meet the needs of Laboratories, Schools, Industry and commercial users offering a wide range of applications. Provides quick statistical data display or output of weighed samples. Provides rapid weighing response coupled with high precision measurement. Sturdy design and easy to use make it a winner in this class.

Features

• 100% Tare range
• Backlit LCD with dual digits (24 mm) and capacity tracker
• 18 Weighing units (including one custom unit)
• Selectable digital filtering for animal / dynamic weighing
• Adjustable filters
• Counting functions
• Date and time
• Multilingual display
• Modern low profile design
• Solid metal housing
• Lock down mounting slot for Kensington™ type lock
• Dual tare keys
• Splash proof to protect from accidental spills
• Removable draft shield supplied on 1 mg Accuracy
• GLP print outs
• External calibration
• Internal calibration optional
• DC Adapter
• Simple user-friendly operation
• Zero Tracking
• Anti-slip adjustable leveling feet
• Colour coded and sealed keypad
• Precision load cell technology
• Large stainless steel pan
• Overload protection

RangeModelCapacityReadability

PGW 1502e	1500 g	10 mg
PGW 2502e	2500 g	10 mg
PGW 3502e	3500 g	10 mg
PGW 4502e	4500 g	10 mg
PGW 6002e	6000 g	10 mg
PGW 1502i	1500 g	10 mg
PGW 2502i	2500 g	10 mg
PGW 3502i	3500 g	10 mg
PGW 4502i	4500 g	10 mg
PGW 6002i	6000 g	10 mg



Technical SpecificationsParticulars

Model Ext. Cal	PGW  1502e	PGW  2502e	PGW  3502e	PGW  4502e	PGW  6002e
Model Int. Cal	PGW 1502i	PGW 2502i	PGW  3502i	PGW 4502i	PGW 6002i
Maximum capacity	1500 g	2500 g	3502 g	4500 g	6000 g
Readability	10 mg
Repeatability (S.D.)	10 mg
Linearity (±)	20 mg
Power supply	15 VDC, 50/60 Hz, 800 mA (Input Voltage 100-240 V, 50/60 Hz)
Units of measurement	Gram (g), Kilogram (kg), Carat (ct), Pound (lb), Ounce (Oz), Dram (d), Grain(GN), Troy Ounce (Ozt), Pennyweight(dWt),Momme(MM), Taels Hk. (TL.H), Taels S. (TL.S),Taels T. (TL.T), Tical (ti), Newton (N),Custom unit



Options

• Anti-vibration Table
• Density determination kit for PGW
• Below balance weighing hook
• Dust cover for PGW
• In-use Dust cover for PGW
• RS-232 to USB interface cable
