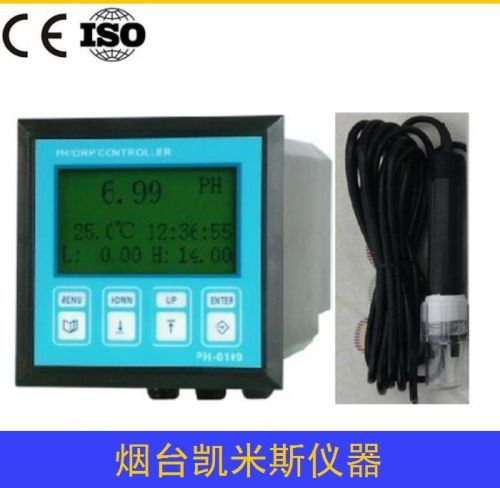

Ph6109 Series PH Orp Controller, Brand Name : chemins

We offer ph6109 series ph orp controller.
Brief introduction
ph6109 series ph orp intelligent analyzer is coupled with powerful and stable industrial microprocessor. It’s strong
anti-interference and simple maintenance. Ph6109 can connect with various types of electrodes and then can be widely
used in water treatment, chemical industrial process, paper industry and food industry. The built-in dot matrix lcd can
display ph values, mv value, temperature, alarm settings and time. Configuration menu is simple and flexible, easy for
operation.
Technical parameter:
ph6109 analyzer parameters
power supply 100 ~ 240 vac 5060hz.
Measurement range 0.00 ~ 14.00ph, -1999mv~+1999mv，-30℃~130℃.
Display type lcd.
Display information ph orp (mv), ph mv, temperature, proportion of 4~20ma output.
Temperature compensation automatic.
Transmission signal 4 to 20ma isolated output.
Data storage 30 days
ph orp accuracy 0.03ph, 2mv
temperature accuracy 0.1℃
dimension 96×96×120mm
composite glass ph electrode parameters
sensor film type general type, low resistant type (option), alkali-proof type (option)
salt bridge type teflon, ceramics (option)
integrated temperature sensor (option) pt100, pt1000, 10k, 2.252k
jacket material pps (polyphenylene sulfide)
jacket connection dimension cable, 34 bsp” thread, or others.
Ph glass electrode selection guide
select ph glass electrode carefully based on target application environment, incorrect selection will shorten the lifespan
of the electrode.
Www.chemins.cn ‐ 2 ‐
normal scale
(4≤ph≤9)
strong acid alkali
(ph9)
0 ~ 80 ℃ a b
0 ~ 130 ℃ c d
