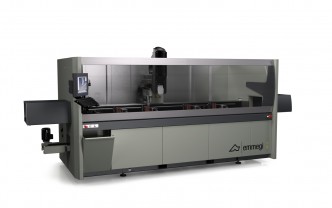

PHANTOMATIC M4 L (MACHINING CENTER) CNC machining center with 4 controlled axes and automatic tool rotation enabling machining on 3 sides of the workpiece. Designed for machining bars or workpieces....
CNC machining center with 4 controlled axes and automatic tool rotation enabling machining on 3 sides of the workpiece. Designed for machining bars or workpieces made of aluminium, PVC, light wood in general and steel up to 2 mm thick. It has a manual 9-station tool magazine and an automatic 4-station tool magazine located on the left side of the safety guard. An optional a second automatic 4-station tool magazine can be installed on the right side of the safety guard. The profile is positioned by a pneumatic stop on the left side. It is blocked by 4 sturdy clamps which are positioned automatically with axis X. The installation of a second pneumatic stop (optional) on the right side allows oversize machining of bars whose length is double compared to the work field. It also has a mobile work surface that facilitates the piece loading/unloading operation and significantly increases the workable section
