PHASE TRMS POWER CLAMP-ON METER RECORDING FUNCTION

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

18 FUNCTIONS 23 RANGES Model KM 3573 PHASE TRMS POWER CLAMP-ON METER WITH kWHr RECORDING FUNCTION & PC INTERFACETransient Protection 6.5kV (1.2/50mS surge)CAT III 600V CE Approved ACCESSORIES:Test....

View More Details

Send Enquiry

Product Details

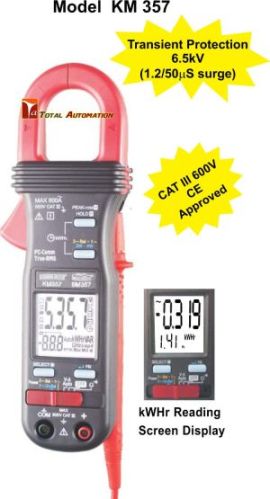

18 FUNCTIONS 23 RANGES Model KM 357
3 PHASE TRMS POWER CLAMP-ON METER WITH kWHr RECORDING FUNCTION & PC INTERFACE
Transient Protection 6.5kV (1.2/50mS surge)
CAT III 600V CE Approved

ACCESSORIES:
Test leads (pair), Battery installed, User's Manual, Carrying Case.

OPTIONAL ACCESSORIES :
PC interface Kit, (including BUA-2303 USB-to-Serial adaptor, BA-1XX optical adapter black, BC-100R cable & Bs Software CD)

• Selectable Power parameters of W, VAR & VA with Total Power Factor in dual-display.
• AutoVA (Auto Selection on ACV, DCV or ACA functions)
• Backlight display
• kWHr Recording
• Display Hold & PEAK-rms HOLD
• PC-Comm computer interface capabilities

[/wptab]

[wptab name=’Specifications-KM 357′]

• Sensing : True RMS sensing
• Jaw opening & Conductor diameter : 26mm max
• Display : Voltage Function : 6000 counts LCD display Power, Ohm & Hz functions : 9999 counts LCD display ACA clamp-on function : 4000 counts LCD display
• Update Rate : Power function : 2 per second nominalVoltage, ACA clamp-on & Ohm functions : 2 per second nominal Hz function : 1 per second nominal
• Operating Temperature : 0 °C to 40 °C
• Relative Humidity : Maximum relative humidity 80% for temperature upto 31oC decreasing linearly to 50% relative humidity at 40°C
• Polarity : Automatic
• Low Battery : Below approx 2.4V
• Altitude : Operating below 2000m
• Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
• Temperature Coefficient : nominal 0.15 x (specified accuracy) / 0°C @ (0°C-18°C or 28°C-40°C), or otherwise specified
• Power supply : Standard 1.5V AAA Battery x 2.
• Power Consumption : Voltage, ACA, Hz & Power functions : 11mA typical Ohm function : 5.5mA typical
• APO Timing : Idle for 30 minutes
• APO Consumption : 4mA typical
• Dimension : 189(L) x 78(W) x 40(H) mm
• Weight : Approx. 192 gms

[/wptab]

[wptab name=’Safety-KM 357′]

• Meets IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed., IEC61010-2-032, EN61010-2-032, UL61010B-2-032.
• E. M. C. : Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-7, EN61000-4-8, EN61000-4-11)
• In an RF field of 3V/m :
• Total Accuracy = Specified Accuracy + 50 digits
• Performance above 3V/m is not specified
• Measurement Category : CAT III 600Volts AC & DC
• Pollution degree : 2
• Overload Protections : ACA Clamp-on jaws : AC 600A rms continuous + & COM terminals(all functions) : 600VDC/VAC rms

[/wptab]
