Phased Array Ut Navships Test Block

₹ 2,000 / piece

Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

PHASED ARRAY UT NAVSHIPS TEST BLOCKDescription: The Phased Array Navship Test Block is used to determine sensitivity levels, fault depth, and distance amplitude correction.Geometry: Four (4) 1/16"....

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 33AAWCA1084F1ZN

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

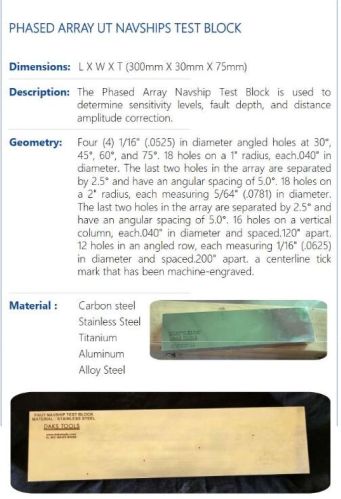

PHASED ARRAY UT NAVSHIPS TEST BLOCK
Description: The Phased Array Navship Test Block is used to determine sensitivity levels, fault depth, and distance amplitude correction.
Geometry: Four (4) 1/16" (.0625) in diameter angled holes at 30°, 45°, 60°, and 75°. 18 holes on a 1" radius, each.040" in diameter. The last two holes in the array are separatedby 2.5° and have an angular spacing of 5.0°. 18 holes on a 2" radius, each measuring 5/64" (.0781) in diameter.The last two holes in the array are separated by 2.5° and have an angular spacing of 5.0°. 16 holes on a vertical column, each.040" in diameter and spaced.120" apart. 12 holes in an angled row, each measuring 1/16" (.0625) in diameter and spaced.200" apart. a centerline tick mark that has been machine-engraved.
Material : Carbon steel,Stainless Steel,Titanium,Aluminum,Alloy Steel.
