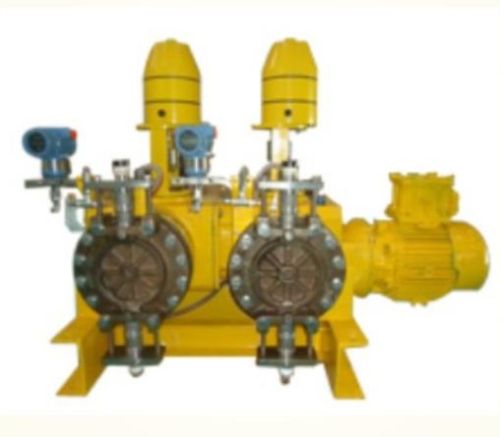

PHL Series Hydraulically Actuated Diaphragm Metering Pump

Features :

• Conforms to API 675 Standards
• Hydraulically driven high performance diaphragm liquid end
• Steady State Accuracy of +1% if rated flow
• Repeatability +3%
• Linearity +3%
• Turn Down Ratio 10:1
• Accurate flow adjustment through 10 Turn Knob rotation
• Amplitude modulated positive stroke return by Sliding Crank mechanism
• Robust Cast Iron construction
• Stroke adjustment : Can be adjusted while pump is running or stopped
• Oil bath lubrication for all drive components
• High precision Check Valves
• Maximum Liquid Temperature upto 150’C
• Capacity adjustment by
• Lockable micrometer stroke adjustment(Std)
• Variable Speed Drive (Optional)
• Liquid end Material of Construction in SS316,
• other materials on request
• End connections available in both threaded & Flanged versions

Applications :

• Steel re-rolling Mills / Pickling
• Acid Regeneration Plants
• Chemical Processing Industries
• Effluent Treatment Plants
• Water Treatment Plants
• Sewage Treatment Plants
• Pulp and Paper Industries
• Alkalies and Caustic Soda Plants
• Power Generation Plants
• Dyes and Intermediates Industries
• Solvent Extraction Plant
• Mineral Industries
• Pharmaceutical Plants
• Sugar Mill and Distillery
• Hydal and Atomic Power Station
• Paint Industries
• Electro Plating Plants
• Fine Chemicals
• Metal Processing Industries
• Atomic Power Stations
• Petro – Chemicals
• Bulk Drugs
