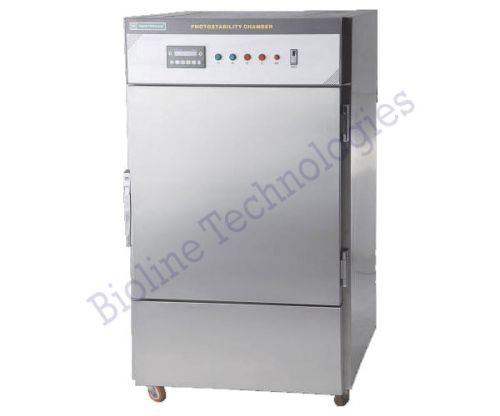

Photo Stability Chambers

Get Latest Price

Temperature Uniformity±1°C
Temperature Range :10°C to 40°C
Accuracy± 0.5°C
Humidity Range :40% RH to 80% RH
Humidity Uniformity :± 3% RH
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Bioline Technologies

Kalwa, Thane, Maharashtra

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Accuracy± 0.5°C
Humidity Uniformity :± 3% RH
Temperature Range :10°C to 40°C
Temperature Uniformity±1°C
Humidity Range :40% RH to 80% RH

This unit is double walled chamber. Interior made of stainless steel and Exterior is either mild Steel finished with powder coating or stainless steel. Glass wool/PUF insulation between both the wall is provided. Full-length inner glass door and outside metal door with magnetic gasket & lock. Forced air circulation for uniform temperature. One Stainless Steel perforated tray is provided. The tray can be placed at various heights to accommodate the change in sample height. The purpose of doing so is to vary the exposure intensity to reduce the test duration. PU wheels for easy move ability.

Illumination
Chamber is illuminated using 4nos of flourescent tube light to produce visible light (measure in lux). A one no. Near UV light of wavelength 365nm (measured in watt/sq. Meter) are fitted on topside of the chamber.

Intelligent control system
Temperature Controller with Ethernet Communication

Cooling system
Hermitically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit. CFC free refrigerant.

Safety
A Safety thermostat to switch off the tube lights if temperature overshoots. Door switch to switch off the UV light when door is opened.

The unit works on 230 Volts AC and 50Hz mains supply.
Selection guide for photostability chamber

Eqp - Equipment
Shp - Shipping

Election guide for photostability chamber with humidity

Optionals

A Calibrated Lux-Meter & UV Meter
Common Software: Centralized work station for viewing, trending performance of equipment. Software complies to US FDA 21 CFR Part 11.

Models		Capacity		Internal Dimension	External Dimension	Weight (Kg)		Tray
Exterior Powder Coated Steel or S.S.	Exterior & Interior S.S.	Cuft	Ltrs.	Hxwxd (mm)	Hxwxd (mm)	Eqp	Shp	Nos.	(in mm)
NEC 104RTSPI	NEC 104RTSPSI	4	100	450 x 450 x 480	875 x 700 x 645	80	155	1	410 x 440
NEC 108RSPI	NEC 108RSPSI	8	227	600 x 630 x 600	1285 x 790 x 895	200	275	1	580 x 550

Models		Capacity		Internal Dimension	External Dimension	Weight (Kg)		Trays	Tray Size
Exterior M.S. & Interior S.S	Exterior & Interior S.S	Cuft	Ltrs.	HxWxD (mm)	HxWxD (mm)	Eqp	Shp	Nos.	(in mm)
NEC 208RHPI	NEC 208RHPSI	8	227	600 x 630 x 600	1285 x 790 x 895	200	275	1	580 x 550
