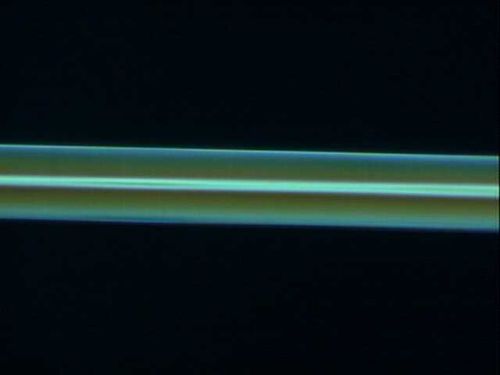

Photonstream The Fast Axis Collimated By An Ar Coated 200um Fiber Lense

₹ 90.50 / 100 100 Piece

MOQ100 Piece(s)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering photonstream the fast axis collimated by an ar coated 200um fiber. ar coated cylindrical lenses when coupling laser diodes to the optical fibers, the important parameters to....

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering photonstream the fast axis collimated by an ar coated 200um fiber.
ar coated cylindrical lenses

when coupling laser diodes to the optical fibers, the important parameters to consider are the size of the laser diode window, fast and slow axis divergences of the laser. Cylindrical lenses is an optical lens that collimates light spreading from a semiconductor laser in the fast-axis direction. it is the first and most important optical component of high power fiber coupled diode laser systems

product feature:

good reliability and easy for alignment
lower cost than cylindrical mirror for fast axis collimated
easy for epoxy dispensing

product application:

semiconductor laser fast axis collimated
slow axis collimated

specifications

200220um nufern mm fiber
precision ar coated & high laser damage threshold on 2-sides
high optical power coupling efficience

Additional Information

Payment Terms T/T
Packaging Details(1)The fiber tip is suspended in air, no contact with other components or external packaging, all fiber should lie in a single plane, and all fiber coils are orderliness placing without spools and intersect. (2)Method of FTA coiling shall not induce defects, no wraps allowed after each fiber coil, to secure finished coil use no more than 8 wraps. No adhesive tape, wire ties, solders wire or metal sheets can be used to maintain the coil position. (3) Vacuum package is required for secondary protection.
