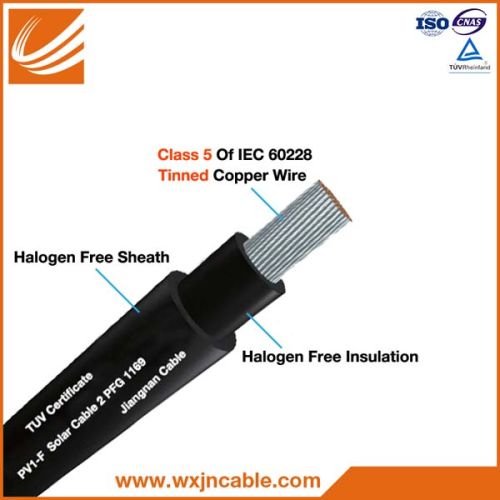

Photovoltaic Cable, Brand Name : WUCAI

We are offering photovoltaic cable.
Application
2 pfg 116908.2007 covers the single core flexible cables (wires) used in dc sides of photovoltaic system which max. Permissible dc voltage is 1.8kv(line to line, non ground system). The product is applicable to the environment which safety degree is under class ii,and it can be parallel used.
Cable standards
the product is manufactured according to the 2 pfg 116908.2007”the requirements of photovoltaic cable"standard. And our product own the tuv rheinland certificate.
Characteristics
rated voltage
ac 0.61kv; dc 1.8kv
conductor:
number of conductors:1
material of copper: tinned copper wire
conductor type:class 5 according to iec 60228
cross-sectional area:1-35mm2
insulation & sheath:
halogen free cross linked polyolefin material
operating temperature:-40~90℃
max. Short circuit temperature: +200℃;
max. Conductor temperature:120℃;
service life shall not be less than 25 years;
ozone resistant and acid-resistant;
good insulation resistance;
good performance of cols bend and cold winding;
low-smoke;
environmentally friendly,conforms to rohs compliant.
Ambient temperature of installation
not less than -20℃
permissible bending radius
4 times of cable diameter
products’ range
type rated voltage no.of cores cross sectional area standard
pv1-f 0.61 kv 1 1.5~35mm² 2pfg 116908.2007
type and name
code name
pv1-f crosslinked polyolefin insulation crosslinked polyolefin sheath solar photovoltaic cable
