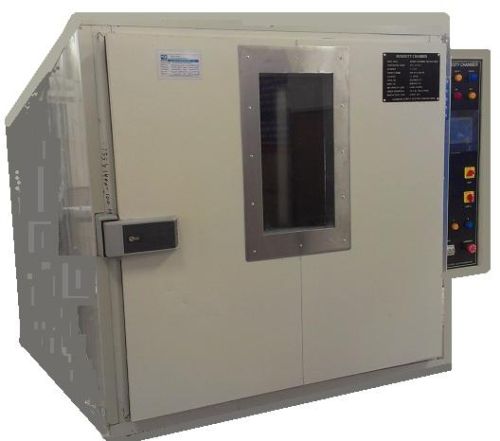

Photovoltaic Environmental Chamber

Chamber Capacity : 1000 liters to 50000 liters
Temperature Range : � 70° C to 180° C
Accuracy : +-0.5° C
Gradient Temperature : +- 1° C.
Humidity Range : 10 % RH to 98% RH with
Accuracy : 2% RH
Gradient of Humidity : +- 3%
Design : The design of the chamber will be such that the height of the chamber floor shall not be more than 0.2 meter to facilitate ease of loading unloading or making connection of the probe lead to the PV modules by the operator. The compressors & other fittings will be at the back side of the chamber. The designs considered for ambient temperature range for satisfactory operation of the chamber from 10 +-2° C to 45 +- 2° C. This test facility available in all KCSWPVEC -Models.
Internal Finish : Interior made of vapor tight pre � polished 16 Swg 304 grade stainless Steel with adjustable removable shelving.
External Finish : Outer material is 16 Swg CRCA Stainless steel with primed and phosphate epoxy based electrostatic powder coating finishing for a pleasant appearance.
Insulation : It's environmentally friendly free of asbestos and CFC guarantees the best possible insulation values and hence, the lowest possible operating costs.
