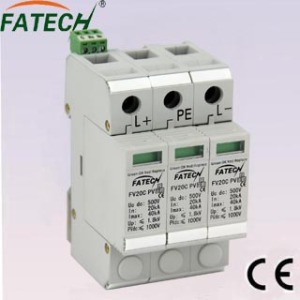

Photovoltaic Surge Protective Device, Brand Name : FATECH

We are offering dc surge protective device fv20c3-1000 pv is for photovoltaic (pv) solar panel system protection, this dc surge protective device is equivalent to dehn dg y pv 1000.
charactors of photovoltaic surge protective device fv20c3-1000pv:
1. Consist of a base part and plug-in protection component, for using in the lightning protection zones concept at boundary 1-2
2. Core parts are metal oxide vristor components with high discharge capacity
3. Low residual voltage and quick response
4. Thermal cut off control thanks to thermo dynamic control disconnector
5. Photovoltaic surge protective device without remote signaling contact for control device
6. Window indication via red mark in the inspection window
7. Photovoltaic surge protective device with low residual voltage, can be multi-parallel connected for different distribution systems
application of photovoltaic surge protective device fv20c3-1000pv:
solar panel, photovoltaic (pv) system.
certificate of the photovoltaic surge protective device:
ce-lvd
we also can supply dc surge protective device for photovoltaic (pv) system protection 1000vdc, surge protective device with imax=60ka, 150ka. And type b surge arrester with spark gap.
model no.: fv20c3-1000 pv
max. Continuous dc voltage[(l+l-)-> pe] [l+-> l-] uc pv v 1000
requirement class to din en 61643-1: 2005 class c
nominal discharge current(820î¼ s) in ka 20
max. Discharge current (820î¼ s) imax ka 40
voltage protection level (at in) [(l+l-)-> pe] [l+-> l-] up kv � 3.6
response time ta ns
operation temperature range -40 ~ +85degree
degree of protection ip20
remote control contacts.
