Pick Fill Seal Machine

We are offering pick fill seal machine.
listing description kawach - roto is the machine on which any type of filler can be attached. Such as auger filler, weigh filler & cup filler.
detailed description

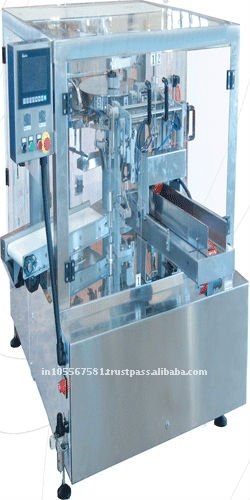

kawach - roto is the machine to pack any material in any type or shape of products. This machine picks the pouch from the stack of pouches and then pouch holder holds the pouch for batch coding, pouch opening, guzzett zipper and stand up opening, material filling, zipper closing and sealing with nitrogen flushing.
the intelligent plc with touch screen controls the machine motions very perfectly. The vaccume system works fantastically to lift the pouch and open the pouch.
following are the fillers can be attached with kawach-roto for filling of product with precise weight accuracy.
auger filler - for free flowing powders like turmeric powder, mehandi, besan, flours, talcum powder, groud sspices, harbal powder, soluble fertilizer powder and all kind of fine powders etc.
weigh filler(linear or multihead) - for extruded snacks like kurkure & potato chips, farsan, chiwda, namkeen, dry - fruits, pulses, grains, tea, sugar, seeds etc.
cup filler - for grains, granules & powders like tea, spices, saunf, panmasala, supari, etc.
piston filler - for pasters, liquids, chutnies, sauce etc.
additional systems
online batch coding device.
nitrogen flushing systems.
available in gmp model for pharmaceutical users.
'd' cut or euro slot or any shape which made to carry the bag easily.
specificationspouch size range 60mm x 60mm to 300mm x 400mm
pouch weight holding capacity max 5 kg
pouch types plane, 3 sided, 4 sided, stand up, guzzetted, zipper etc.
out put speed 20 to 60 pouches/min
maximum stack of pouch 200 pouches
control plc controlled
operation combination of mechanical & pneumatics
pouch material any virgin or laminated film
pouch lifting by vaccum cups
pouch holding cam operated grippers
pouch opening by vaccum cups and taking pouch holder near to each other mechanically
pouch stretching system by taking pouch holder far from each other mechanically
heating type hot bar induction or impulse type
sealing system pneumatically or mechanically operated jaws
power requirement 420v, 3ph, 50hz
compressed air requirement 6 cfm at 6 bar
machine weight (approx) 700 kg t0 1500 kg
machine dimension (approx) withoutfilling system 1200(w) x 1500(b) x 1800(h)mm
available in variety of models 6 station, 8station, 10 station
pouch sizes range 60(w)x60(h) to 100(w)x100(h), 100(w)x100(h) to 150(w)x200(h),
125(w)x125(h) to 200(w)x280(h), 150(w)x150(h) to 250(w)x350(h), 200(w)x200(h) to 300(w)x400(h)
