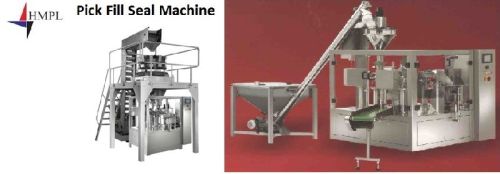

Pick Fill Seal Machine

Easy to operate:

-PLC controller and color touch-screen, fault indication on the touch screen.

-Unmanned in weighing and packing process, machine alarm automatically when failure.

-Only about 10 minutes to change different size pouches.

Frequency control:

-Speed can be adjusted by frequency conversion within the range.

Easy to clean:

-The auger filler and conveyor can be opened for cleaning completely.

Optional Accessories

-Rotatory packing machine

-Auger filler

(a) Auger conveyor

(b) Vacuum Conveyor

-Check Weigher

-Metal Detector

-Output Conveyor

Safety:

-No pouch/incorrect pouch opening-no-fill-no-seal, machine alarm.

-Machine alarm and stop when the inadequate air pressure.

-Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygiene:

-Hygienic construction, the product contact parts are adopted SUS 316 stainless steel.

-Imported engineering plastic bearings, no need to oil, no contamination.

-Oil-free vacuum pump, avoid the pollution of the production environmental.

-Dust cleaning devices avoid the powder flying all over.

Standard Accessories

-PLC controller

-Date printer ( Ribbon type )

-Pneumatic components

-Temperature controller

-Vacuum pump

-Discharge conveyor

Bag Type,Flat bag, portable bag, standup bag, zipper bag, all kinds of compound bags.

Bag size:

200 model

Min. width 100 mm           Min. length 100 mm

Max. width 200 mm           Max length 300 mm

300 model

Min width 150 mm            Min length 100 mm

Max width 300 mm            Max length 330mm
