Electric Piezo Objective Scanners, Packaging Type : White

MOQ1 Piece(s)
Driven TypeElectric,piezoelectric
CertificationCE Certified,ISO9001 ROHS
ConditionNew
ApplicationMicro imaging
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Harbin Core Tomorrrow Science&Technology Co.,Ltd.

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Availability0.2
FeatureAdjustable,Easy To Operate,Stable Performance
ConditionNew
Driven TypeElectric,piezoelectric
Total Carbohydrate1yr
Country of OriginChina
Number Of FlowerScanners
CertificationCE Certified,ISO9001 ROHS
ApplicationMicro imaging
Driving voltage120V/150V
max travel range110um
resolutation2.5nm
Resonant frequency350Hz
active axesZ
Recommend piezo controllerE53

The p72 series offer a nano positioning and scanning range up to 110î¼m(max). And it offers a compact size, and an outstanding resonant frequency. The system is well suited for high precision positioning applications with nanometer resolution. The successful parallelogram design guarantees high parallel motion without influencing the optjical path. The positioning repeatability can be guaranteed by an integrated measurement system. The design with integrated pre-load of the actuator offers the following advantages: high resonant frequency and highly parallel motion. Adapter thread rings for the nose piece are available separately. They allow for fast mounting and exchanging of the system on the microscope. Other objectives no longer need to be removed.

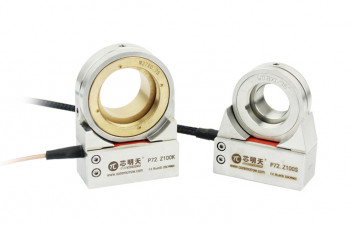

CoreMorrow P72 Piezo Objective Scanner

P72 piezoelectric objective scanner is a Z-axis motion piezo positioner specially designed for objective lens focusing microscopy. It adopts a frictionless flexible hinge parallel guiding mechanism, with ultra-high focusing stability. The objective positioner is loaded with a microscopic detection/measurement or observation device to improve accuracy.

Models	Suffix S-Closed loop Suffix K-Open loop	P72.Z100S P72.Z100K	Units
Active axis		Z
Travel range（0~120V）		80	μm±20%
Travel range（0~150V）		100	μm±20%
Sensor type		SGS/-
Resolution		5/2.5	nm
Linearity		0.1/-	%F.S.
Repeatability		0.05/-	%F.S.
Push/pull force		110/15	N
Stiffness in motion direction		1.4	N/μm±20%
Unloaded resonant frequency		350	Hz±20%
Unloaded step time		10/3	ms±20%
Closed-loop unloaded operating frequency	10% travel	50	Hz±20%
	100% travel	15
Load capacity		0.2	kg
El.capacitance		3.6	μF±20%
Material		Steel
Mass		150	g±5%
