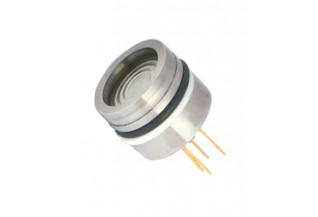

(MRA21) OEM Piezo-Resistive Pressure Sensor Our storage unit is inclusive of all required amenities essential for a safe storage of the products. The unit is supervised by efficient personnel ensuring zero damage to the stored items. Since inception, our company has upheld its policy to make timely delivery. Thus, we guarantee to deliver products to buyers doorsteps on the dates promised.
Features : High Measuring Accuracy Pressure Measurement Range of -1 to 1000bar Compact and Rugged Model Wide Range of Media Compatibility Low Static and Thermal Errors
Applications : Process control systems Production machinery Hydrology research Machine tool control Air conditioning and compressed air lines Chemical industries Agricultural equipment Open cut mining Hydraulic pumps Power plants
| Technology | Piezo resistive |
|---|---|
| Type | OEM Pressure Sensing Element |
| Standard Measurement Range (bar) | [-1/0], [-0.2/+0.2], 0.2, 1, 4, 6, 10, 16, 25, 50, 100, 400, 600, 1000, Other non standard range |
| Purpose and Application | General Purpose, Corrosive Media, Compact Size / Miniature, Low voltage Excitation |
| Accuracy (combined LRH) | 0.25% FS, 0.5% FS |
| Output Signal | ~ 70mV, ~ 40mV |
| Pressure Reference | Abs.: Absolute (0 at vacuum), SG: Sealed Gauge (0 at 1bar), VG: Vented Gauge (0 at atmospheric pressure) |
| Process Connection | No Pressure Port, G1/4(¼" BSPP male), G1/2(½" BSPP male), Others |
| Electric Connection | 4-wire, 6 pin connection |
| Protection Level | No |
| Overload Rating | 1.5 |
| Long Term Stability | <0.2% FS/year |
| Diaphragm Material | Stainless Steel 316L, Hastelloy, Titanium |
| Compensated Temp. Range | 0 to 70oC |
| Operating Temp. Range | -20 to +80oC |
| Temp. Coefficient of Zero | 0.02% FS /oC |
| Temp. Coefficient of Span | 0.02% FS /oC |
| Input Resistance | 2-6kΩ |
| Output Resistance | No |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | ≤ ±3mV |
