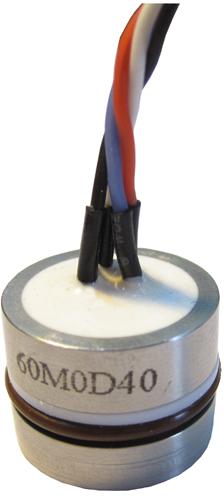

Piezoresistive Pressure Sensor

MOQ100 Piece(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

We offer piezoresistive pressure sensor, automotive pressure sensor, oem pressure sensor,ac pressure sensor, compressor pressure sensor, oil pressure sensor, industrial pressure sensor, low cost....

Company Information

Member Since 15 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We offer piezoresistive pressure sensor, automotive pressure sensor, oem pressure sensor,ac pressure sensor, compressor pressure sensor, oil pressure sensor, industrial pressure sensor, low cost pressure sensor.
Application
1,Industrial process control
2,Liquid pressure system and switch
3,Level measure 4,Gas, liquid pressure measure5,Pressure inspection meter 6,Pressure calibrator
7,Cooling equipment and air conditioner 8,Aviation and navigation inspection
Feature 1,High accuracy, High reliability 2,Constant current power supply
3, Absolute, Sealing pressure is optional 4,Wider temperature compensation range
5,Isolated construcion,Enable to test various media
Performance & Parameters
Power Supply 1.5 mADC
Span Output 100±20mV
Zero Output ±2 mVDC
Accuracy 0.25%(Typical)
Measuring Range(Absolute) -100KPa; 100KPa; 250KPa; 400KPa; 600KPa; 1MPa; 1.6MPa; 2.5MPa; 5MPa; 7MPa; 10MPa; 16MPa; 25MPa; 40MPa; 60MPa; 100MPa
Measuring Range(Gauge) 10KPa; 35KPa; 50KPa; 70KPa; 100KPa; 250KPa; 400KPa; 600KPa; 1MPa; 1.6MPa; 2.5MPa; 4MPa
Overload 3*F.S(
