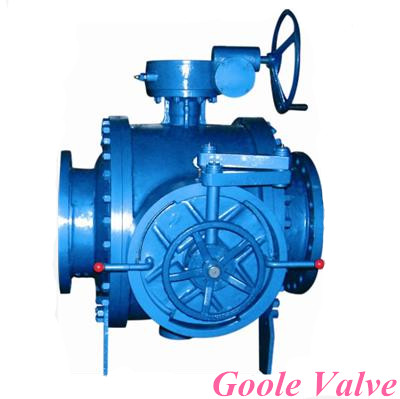

Pigging Ball Valve

We are offering pigging ball valve,
pigging valves contain pigging launcher and pigging receiver, they are paired. And by using the compatible pig. Pigging valve can completely replace the complex conventional device for launching pig and receiving pig.
pigging ball valve main parameter
nominal diameter : 50mm-500mm , 2”-20”
nomianl pressure : class 150-1500
temperature : -30℃-150℃
applicable medium : water, oil, gas.
Material: ss, wcb, lcc,cf8,cf8m
operation : worm gear, pneumatic,electric or specified by clients.
Standard : api 6d, ansi b16.34
pigging ball valve feature
1. Trunnion mounted ball; proven shut-off style design with energized upstream sealing seat, reduces the number of valves and controls required in traditional pig launching skids.
2. Pigging valve is superior to conventional devices for cleaning pipelines in its compact structure, reliable properties, handy operation, easy maintenance and lower cost for purchasing and running.
3. The inside of pipe without gaps, avoid existing foreign body;
4. Pigging valve's sealing ring are simple and all o-rings, maintain easy.
5. Pig valves could be pressure relief by relief valves, easy to openshut of quick closure.
6. Standardized safety design such as antistatic design; cleanout design; zero leakage.
