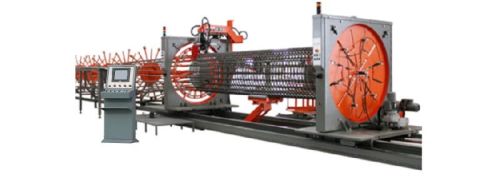

Pile Cage Welding Equipment

₹ 44.14 Lakh / Set

MOQ1 Set(s)
everage power consumption10kw
Model NO.YTGH-1250/YTGH1500/YTGH2000/YTGH2500
bending diameter12-20mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shaanxi YONGTUO Machinery Technology Co., Ltd.

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Ytgh-1250
.cage pile diameter(mm): 200-1250mm
.cage length(m): 12m(customized is acceptable )
.cage max weight (kg): 6000
.coil bar diameter(mm): 5-16mm
.space between coil bar (mm): 50-500mm
.main bar diameter (mm): 12-40mm
. Average power consumption(kwh):8(kwh)
ytgh-1500
.cage pile diameter(mm)300-1500mm
.cage length(m): 12m(customized is acceptable )
.cage max weight (kg): 7000
.coil bar diameter (mm): 5-16mm
.space between coil bar (mm): 50-500mm
.main bar diameter (mm): 12-40mm
. Average power consumption (kwh):10(kwh)
ytgh-2000
.cage pile diameter(mm): 400-2000mm
.cage length(m): 12m(customized is acceptable )
.cage max weight (kg): 8000
.coil bar diameter (mm): 5-16mm
.space between coil bar (mm): 50-500mm
.main bar diameter (mm): 12-40mm
.average power consumption (kwh):12(kwh)
ytgh-2500
.cage pile diameter(mm): 400-2500mm
.cage length(m): 12m(customized is acceptable )
.cage max weight (kg): 10000
.coil bar diameter (mm): 5-16mm
.space between coil bar (mm): 50-500mm
.main bar diameter (mm): 12-40mm
.average power consumption (kwh):16(kwh)
