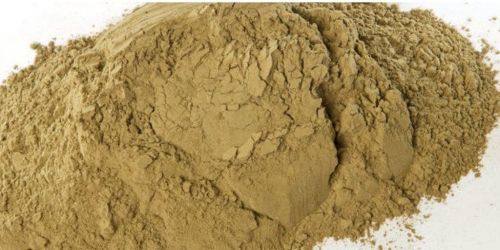

Pilewell- Sw-150 (pilling Grade - Sodium Bentonite)

We offer spilewell- sw-150 (pilling grade - sodium bentonite). Pilewell- sw-150
description- pile sw 150 is selectively mined and process for high end trenchless technology as well as trenchless drilling, it is polymer treated sodium activated bentonite which have a yield of 150 bbl. Pilewell sw-150 is highly recommended for micro tunnelling, hdd, hdb and other similar high tech trenchless process.
Why this product- aimed to achieve a good engineered water based mud for high end trenchless technology, it is very important to achieve the best rheology, require some special water based polymer. The polymer able to give perfect rheology as well as some special property like low skin friction, less heat at cutting head and thin filter cake formation.
Rheological property- yield =150 bbl
at 45 kgm3
yield point(yp)- 27 lb100 ft2 min.
Gel strength- 14 lb100 ft2 min.
Plastic viscosity- 7 -10 lb100 ft2
filter loss- 20 ml. Max.
General property
parameters result
moisture 8-11 % max.
Passing through @ 200# 90 min.
Ph 9-11
loose bulk density gmcc. 0.75-0.9
drilling fluid property-
clay concentration(freshwater) 30 kgm3 40 kgm3 45kgm3 50 kgm3
yield point( lb100 ft2 ) 20 min 25 min 30 min 35 min
marsh viscosity(sec.) 30 min 35 min 42 min 47 min
advantages-
applicable for many type of soils statistic.
One bag slurry suitable for micro tunnelling, hdd, pipe jacking, hence one bentonite for whole project.
Ace carrying capacity.
One bag additives for drilling.
Share thinning fluid.
