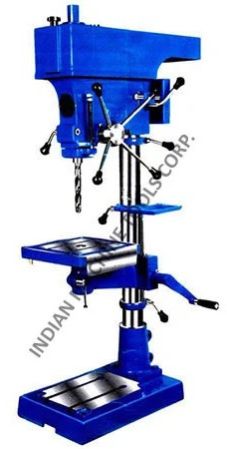

Pillar Drilling Machine, Driven Type : Electric

Itco pillar drilling machine of 20mm capacity has these features: The spindle of this machine is made from alloy steel with four splines as per machine tools spline standard with spindle Morse Taper of MT-2. The drilling capacity of this machine is 20 mm in steel, 22 mm in cast iron. The main pillar is made up of seamless pipe of diameter 72 mm. 1Hp 1440rpm Electric Induction motor is required for running this machine. Round and square work tables are available with dia325mm and 300x300mm resp. Spindle stoke of this machine is 125mm with centre distance of 215 mm. Standard accessories includes ready to fit Motor pulley and drill drift.
