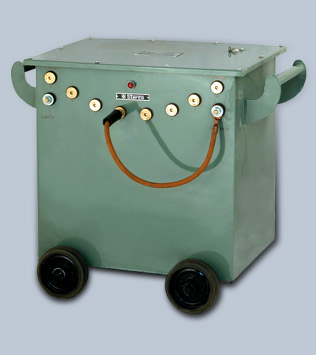

Pin Type ARC Welder (Oil Cooled) Model - SPT

Get Latest Price

MaterialSteel Tank, Copper Coils
Number Of FlowerOil Cooled Stepless Regulator Type Arc Welder
Suitable ForBridges, Construction Jobs, Automobile Workshops, Steel Furniture, Gate Grills, Truck Repairing, Fabrication Jobs
Country of Origin230 Volts Single Phase, 380/440 Volts 50Hz
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Tejindra Electric Works (Regd.)

Wazirpur, Delhi

4.5/5

(29)

View Number

Member Since 22 Years
Nature of Business Manufacturer
GST No. 07AALPS9861J1ZU

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Suitable ForBridges, Construction Jobs, Automobile Workshops, Steel Furniture, Gate Grills, Truck Repairing, Fabrication Jobs
MaterialSteel Tank, Copper Coils
Number Of FlowerOil Cooled Stepless Regulator Type Arc Welder
Country of Origin230 Volts Single Phase, 380/440 Volts 50Hz
EfficiencyHigh Efficiency
Input Supply Difference400/440 Volts 3 Phase For Model SPT 6-8, 220 Volts Two Phase For Model SPT 3-5
MobilityMounted On Four C.I./Rubber Wheels
Specifications ComplianceI.S. 1851 (1975)
ComponentsTransformer In Steel Tank, Primary And Secondary Coils, Variable Choke

Oil Cooled Stepless Regulator Type Arc Welder is suitable for Bridges, Construction Jobs, Automobile Workshops, Steel Furniture, Gate Grills, Truck repairing and all types of fabrication jobs.
The set consists of a Transformer, housed in a steel tank, with heavily wounded primary and secondary coils, with pure copper. The current is controlled by adding variable choke.
The Sterco Arc Welding Transformers are manufactured in accordance with I.S. 1851 (1975) specifications and designed to operate on 230 volts single phase 380/440volts, 50Hz (two lines of three phase A.C supply) It process the highest efficiency and is mounted on four C.I./Rubber wheels.

Specification of Model SPT 6-8 are same as SPT 3-5 as above. Only difference is of input supply that is 400/440 volts 3 phase instead of 220 volts two phase of three phase.

Note: We reserve the right to change the design and modify specifications at the discretion of our technical department

Technical Specifications
MODEL	SPT - 1	SPT - 2	SPT - 3	SPT - 4	SPT - 5	R - 9	JSS-3431-03-1992
Welding current regulator taps	5	6	6	7	8	8 plugs	6 plugs
Max. output amps.	200	250	250	350	450	600	175 Amp.
Max. continuous hand welding current at 60% duty cycles amps.	150	200	200	300	400	500	150 Amp.
Continuous hand welding current at 100% duty cycles amps.	90	120	120	180	240	300
Min. hand welding current Amps.	50	50	50	50	50	75	30 Amp.
Max. electrode size	10	8	8	6	4	2 SWG	3.5 MM
Min. electrode size	14	14	14	14	14	12 SWG	1.5 MM
Intermediate electrode size	8	6	6	4	4	2 SWG	4.5 MM
Open circuit voltage	65	65	65	65	65	65	60/80
Max. welding voltage	28	30	30	34	38	44 Volts	27 Volt
Min. welding voltage	22	22	22	22	22	23 Volts	21 Volt
Primary circuit	230 Volts	380/440 volts, 50 hz. (2 lines of single ph 3 ph A.C, mains					240 V.1 ph. (415 2Lines of 3 ph.)
KVA rating at maximum continuous hand welding current	9.35	13	13	19.5	26	32.5 KVA	12 KVA
KVA rating according to I.S.S	6	7.8	7.8	12	16	24 KVA	9 KVA/12 KVA
Insulation class	A	A	A	A	A	A	A
App. weight without oil	70	85	95	145	190	250 Kg.	90 Kg.
Oil capacity	50	65	65	90	110	120 ltrs.	70 ltrs.
