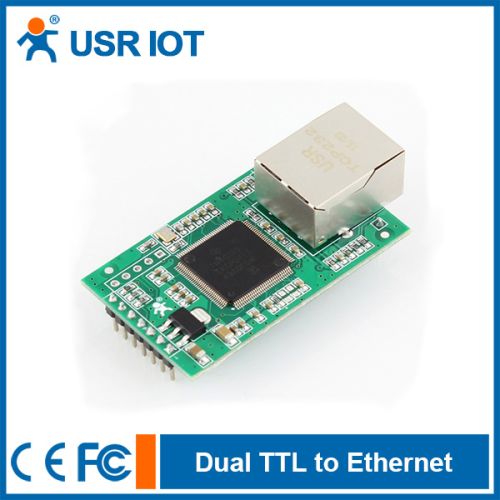

Pin Type Dual Serial UART To Ethernet Module

Pin Type Dual Serial UART to Ethernet Module
Function features:
New Cortex-M4 kernel, industrial working temperature range(-40~85℃), elaborate optimization TCPIP protocol
stack, stable and reliable.
Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client various of work modes.
Support virtual serial work way, provide corresponding software.
Serial port highest baud rate from 110BPS to 1024000BPS(COM0 only max 256000BPS).
Wide voltage input, more applications.
Support DHCP automatically access IP, can inquire the facility within network through the UDP broadcast protocol.
Provide PC TCPIP SOCKET programming example, VB, C++, Delphi, Android, IOS.
The built-in web page, also parameter setting via web, can customize web pages for users.
Can also set via UDP, provide the set up protocol and software source code.
Reload button, a key restore default Settings.
RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.
The global only MAC address bought from IEEE, the user can define MAC address (please state when you make order).
Support upgrade firmware via network.
Support IP and domain name at the same time
Support up to 4 link from client when act as TCP Server, send and receive data with ID.
Can modify MAC address you wanted.
Can modify HTTP server port for module built-in HTTP server.
Support Keepalive.
Product characters:
Mechanical dimesion: (L� W� H): 55� 30� 23.2(mm) including RJ45 and connector;
PCB dimension(L� W): 50.4� 30.0(mm);
5V 3.3V power input, choose 1 input
2 * serial(2 * TTL)
TTL serial port, support hardware flow control
Operating Temperature: 0~75 ° C (business version) -25-80° C (industry version)
Storage temperature: -40~85 ° C
