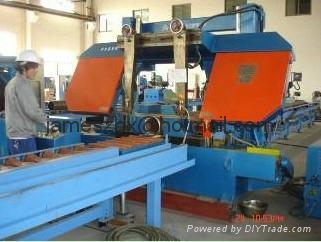

Pipe Cutting Band Saw Machine, Brand Name : SHPPM

₹ 44.50 Lakh / 100000 100000 Set

MOQ1 Piece(s)
Brand NameSHPPM
 Cutting efficiency: ≤2Min /pipeline bevel (DN200 SCH40); ≤3Min /pipeline bevel (DN200 SCH40) On-line Performance: good (designed as per the one line equipment of the production line)
 Opening quality: good Price: low
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

we are offering pipe cutting band saw machine. shanghai piping processing machinery co., ltd  Technical parameters  Structure: horizontal and with two posts  Pipe diameter applicable:....

Company Information

Shanghai Piping Processing Machinery Co.,Ltd

Member Since 15 Years
Nature of Business Supplier
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

we are offering pipe cutting band saw machine. shanghai piping processing machinery co., ltd
 Technical parameters
 Structure: horizontal and with two posts
 Pipe diameter applicable: DN50～600(φ60～610);DN50～400(φ60～426)
 Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
 Feeding speed: stepless speed adjustment
 Speed of the band saw: 27, 52 or 78 mmin；18, 42 or 68 mmin
 Size of the band saw: 6700X*41*1.3; 4570X*34*1.1
 Length-fixing system: a mechanical Length-fixing system could be provided if necessary so as to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system.
 Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.
