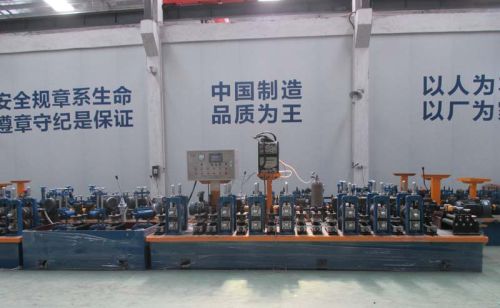

Pipe Making Machine, Certification : ISO9001

We offer Pipe Making Machine.
Advantage:
1,Easy to replace the molds; 2,Low noise and low investment 3,Use Siemens motor and Siemens PLC with high quality
1.Application: Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, squre tube, shaped tube) production.
2. As the mature technology of stainless steel welded pipe, seamless pipe has been replaced in many areas, such as chemical, pharmaceutical, brewery, oil, food, automtibe, paper and air conditioning industry.
3. Automated production process: The open book, cleaning equipment, feed direction, forming, welding, weld the entire inner peace, oter weld grinding, shaping sizing, solution treatment, the final sizing, straightening, testing, marking, set feet, cut off (coil), the materials such as continuous molding process.
4. Certificate: All the machines has the certificate of ISO9001:2008.
5. Warranty: We provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).
6. Machinery main components: open book machine (uncoiler), forming welding machine, grinding machine, sizing machine, frame straightening, cutting machine, finished frame.
TECHNICAL PARAMETER:
Model Horizontal axles(mm) Vertical axles(mm） Diameter range(mm) Thickness(mm） Main motor power Size of machine(L*W)(M)
BG-30 30 25 ¢6-¢25 0.2-0.8 4KW 19.5*1.0
BG-S40 40 25 ¢6-¢32 0.2-1.0 5.5KW 20*1.0
BG-40 40 25 ¢9-¢51 0.2-1.5 7.5KW 21.5*1.1
BG-L40 40 25 ¢12-¢64 0.3-2.0 11KW 21.5*1.1
BG-50 50 30 ¢25-¢76 0.3-2.0 11KW 24*1.2
BG-60 60 40 ¢38-¢114 0.4-2.5 15KW 26*1.4
BG-80 80 50 ¢76-¢168 1.0-3.5 18.5KW 32*2.3
BG-100 100 60 ¢114-¢219 1.0-4.0 22KW 23*1.2
Main components of the production: uncoiler、forming and welding unit、grinding unit、sizing unit、straightening racks、cut off machine、end- product shelf
