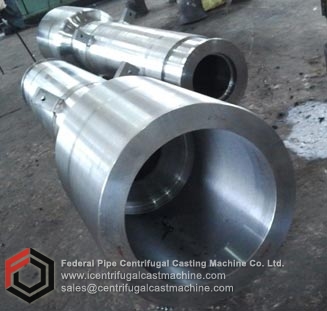

Pipe Moulds

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We manufacture, export, and supply a comprehensive array of Pipe Moulds to clients. They are designed using superior raw material by our team of professionals in accordance with the set industry norms. Pipe Moulds are offered in varied technical specifications in order to meet the diverse demands of customers. They are easy to install and use. Pipe Moulds can be availed at cost-effective prices.Key Features : Mould Type : Horizontal Mould : 30COMO metal mould Water Cooled Die Process and Hot Die Process Utilization : For Pipe Casting

View More Details

Send Enquiry

Technical Specifications

Items	Model	Pipe Length	Material Quality
Grey Iron Pipe Mould	Φ3-12 inches	1500-10000mm	30COMO
Ductile Iron Pipe Mould	Φ4-20 inches	1500-10000mm	30COMO
Alloy Steel CCM Mould	Φ5-30 inches	1500-10000mm	30COMO
Power Control Panel	HM-HT-D
Heat Treatment	12.5 meter Pit furnace
Production Capacity	80-120 pieces/8 hours shift

Pipe Size Conversion

Dia (inch)	Outer Dia(mm)	Wall Thickness (mm)	Length(mm)	Weight(kg)
Φ3	86±1.0	4.3-0.7	3000±10	24.6
Φ4	111±1.0	4.4-0.7	3000±10	34.4
Φ5	137±1.5	4.8-1.0	3000±10	41.9
Φ6	162±1.5	4.8-1.0	3000±10	51.2
Φ8	214±1.5	5.8-1.0	3000±10	81.9
Φ10	268±1.8	6.4-1.2	3000±10	113.6
Φ12	318±0.18	7.0-1.2	3000±10	148.0
