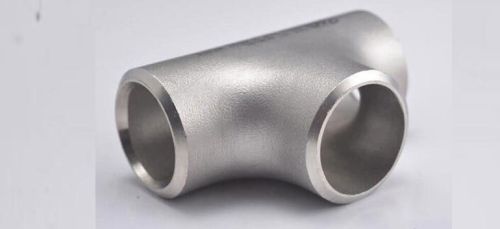

MS Pipe Tees

MaterialMS
Usage/ApplicationPlumbing Pipe
Feature3 Way Pipe Fittings
TypePipe Tees
Supply TypeManufacturer
Preferred Buyer Location All over the world

Raj Bhoomi Engineers is a leading manufacturer, exporter and supplier of reducing tees and straight tees in a variety of shapes and dimensions. Also known as 3 way pipe fittings, tee fittings resemble the alphabet ‘T’, where in two horizontal pipes and one vertical pipe can be attached, to manage the direction and mixture of fluids. Pipe tees are widely used in piping systems to transport two phase fluid mixtures and are mainly of two types – Equal Tee and Unequal Tee (Tee).

View More Details

Send Enquiry

Company Information

RAJBHOOMI ENGINEERS

Marine Lines, Mumbai, Maharashtra

View Number

Member Since 1 Year
Nature of Business Exporter

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nominal Diameter		Outside Diameter		Center to End
Nominal Diameter		D1	D2	Center to End
DN	NPS	Series A	Series A	"C"	"M"
DN	(Inches)	(mm)	(mm)	(mm)	(mm)
15×15×15	1/2 × 1/2 ×1/2	21.3	21.3	25	25
15×15×10	1/2×1/2×3/8	21.3	17.3	25	25
15×15×8	1/2×1/2×1/4	21.3	13.7	25	25
20×20×20	3/4×3/4×3/4	26.9	26.9	29	29
20×20×15	3/4×3/4×1/2	26.9	21.3	29	29
20×20×10	3/4×3/4×3/8	26.9	17.3	29	29
25×25×25	1×1×1	33.7	33.7	38	38
25×25×20	1×1×3/4	33.7	26.9	38	38
25×25×15	1×1×1/2	33.7	21.3	38	38
32×32×32	1.1/4×1.1/4×1.1/4	42.4	42.4	48	48
32×32×25	1.1/4×1.1/4×1	42.4	33.7	48	48
32×32×20	1.1/4×1.1/4×3/4	42.4	26.9	48	48
32×32×15	1.1/4×1.1/4×1/2	42.4	21.3	48	48
40×40×40	1.1/2×1.1/2×1.1/2	48.3	48.3	57	57
40×40×32	1.1/2×1.1/2×1.1/4	48.3	42.4	57	57
40×40×25	1.1/2×1.1/2×1	48.3	33.7	57	57
40×40×20	1.1/2×1.1/2×3/4	48.3	26.9	57	57
40×40×15	1.1/2×1.1/2×1/2	48.3	21.3	57	57
50×50×50	2×2×2	60.3	60.3	64	64
50×50×40	2×2×1.1/2	60.3	48.3	64	60
50×50×32	2×2×1.1/4	60.3	42.4	64	57
50×50×25	2×2×1	60.3	33.7	64	51
50×50×20	2×2×3/4	60.3	26.9	64	44
65×65×65	2.1/2×2/1/2×2.1/2	73	73	76	76
65×65×50	2.1/2×2/1/2×2	73	60.3	76	70
65×65×40	2.1/2×2/1/2×1.1/2	73	48.3	76	67
65×65×32	2.1/2×2/1/2×1.1/4	73	42.4	76	64
65×65×25	2.1/2×2/1/2×1	73	33.7	76	57
80×80×80	3×3×3	88.9	88.9	86	86
80×80×65	3×3×2.1/2	88.9	73	86	83
80×80×50	3×3×2	88.9	60.3	86	76
80×80×40	3×3×1.1/2	88.9	48.3	86	73
80×80×32	3×3×1.1/4	88.9	42.4	86	70
90×90×90	3.1/2×3.1/2×3.1/2	101.6	101.6	95	95
90×90×80	3.1/2×3.1/2×3	101.6	88.9	95	92
90×90×65	3.1/2×3.1/2×2.1/2	101.6	73	95	89
90×90×50	3.1/2×3.1/2×2	101.6	60.3	95	83
90×90×40	3.1/2×3.1/2×1.1/2	101.6	48.3	95	79
100×100×100	4×4×4	114.3	114.3	105	105
100×100×90	4×4×3.1/2	114.3	101.6	105	102
100×100×80	4×4×3	114.3	88.9	105	98
100×100×65	4×4×2.1/2	114.3	73	105	95
100×100×50	4×4×2	114.3	60.3	105	89
100×100×40	4×4×1.1/2	114.3	48.3	105	86
125×125×125	5×5×5	141.3	141.3	124	124
125×125×100	5×5×4	141.3	114.3	124	117
125×125×90	5×5×3.1/2	141.3	101.6	124	114
125×125×80	5×5×3	141.3	88.9	124	111
125×125×65	5×5×2.1.2	141.3	73	124	108
125×125×50	5×5×2	141.3	60.3	124	105
150×150×150	6×6×6	168.3	168.3	143	143
150×150×125	6×6×5	168.3	141.3	143	137
150×150×100	6×6×4	168.3	114.3	143	130
150×150×90	6×6×3.1/2	168.3	101.6	143	127
150×150×80	6×6×3	168.3	88.9	143	124
150×150×65	6×6×2.1/2	168.3	73	143	121
200×200×200	8×8×8	219.1	219.1	178	178
200×200×150	8×8×6	219.1	168.3	178	168
200×200×125	8×8×5	219.1	141.4	178	162
200×200×100	8×8×4	219.1	114.3	178	156
200×200×90	8×8×3.1/2	219.1	101.6	178	152
250×250×250	10×10×10	273	273	216	216
250×250×200	10×10×8	273	219.1	216	203
250×250×150	10×10×6	273	168.3	216	194
250×250×125	10×10×5	273	141.3	216	191
250×250×100	10×10×4	273	114.3	216	184
300×300×300	12×12×12	323.9	323.9	254	254
300×300×250	12×12×10	323.9	273	254	241
300×300×200	12×12×8	323.9	219.1	254	229
300×300×150	12×12×6	323.9	168.3	254	219
300×300×125	12×12×5	323.9	141.3	254	216
350×350×350	14×14×14	355.6	355.6	279	279
350×350×300	14×14×12	355.6	323.9	279	270
350×350×250	14×14×10	355.6	273	279	257
350×350×200	14×14×8	355.6	219.1	279	248
350×350×150	14×14×6	355.6	168.3	279	238
400×400×400	16×16×16	406.4	406.4	305	305
400×400×350	16×16×14	406.4	355.6	305	305
400×400×300	16×16×12	406.4	323.9	305	295
400×400×250	16×16×10	406.4	273	305	283
400×400×200	16×16×8	406.4	219.1	305	273
400×400×150	16×16×6	406.4	168.3	305	264
