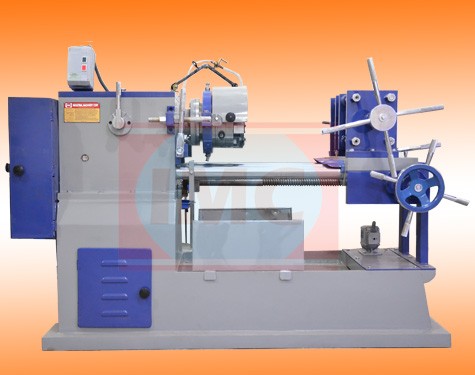

Pipe Threading Machine

Pipe Threading Machine is used for Cutting External Thread on Pipes by Chasing method. HSS Pipe Threading Tangential Chasers are used as cutters. Pipe remains stationery and Die Head rotates. Matric, BSP, BSPT, NPT, UNF,UNC, BSW, Acme Threads B.S.F etc. threads can be cut on this Pipe Threading machine depending upon the type of Chasers. The machine mainly consists the following:-

• Base
• Head Stock
• Saddle
• Bed or Pillar Type Clamping Vice
• Die Head.

Industrial Machinery Corporation, Pipe Threading Machine Manufacturer and Exporter. We Supply our Pipe Threading Machines in India and Abroad with the name of ‘IMC’.

Being in the business of industrial machine producing for over 7 years, what we would advise all of the purchasers with respect to Pipe Threading Machines is to have a point by point discussion on what are the customization’s that you really require in your Pipe Threading Machines.What’s more, to get the Pipe Threading Machines according to your redid necessities, it is constantly best to purchase these machines from an accomplished Pipe Threading Machine in India and when it happens to best, there is no name in front of industrial machinery corporation.

Pipe Threading Machine is used for Cutting External Thread on Pipes by Chasing method. HSS Pipe Threading Tangential Chasers are used as cutters. Pipe remains stationery and Die Head rotates. Matric, BSP, BSPT, NPT, UNF,UNC, BSW, Acme Threads B.S.F etc. threads can be cut on this Pipe Threading machine depending upon the type of Chasers. The machine mainly consists the following:-

• Base
• Head Stock
• Saddle
• Bed or Pillar Type Clamping Vice
• Die Head.

PIPE THREADING MACHINE are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct pipe threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

DESIGN & WORKMANSHIP: The Industrial Machinery Corporation Pipe thread cutting machine are designed to produce quality threads within the tolerance for which they were intended.

HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.

VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Range of IMC Pipe Threading Machines and Die Heads.
1/4″ to 1″ Capacity Pipe
3/8″ to 1.1/2″ Capacity Pipe
1/2″ to 2.1/2″ Capacity Pipe
1″ to 4″ Capacity Pipe
2.1/2″ to 6″ Capacity Pipe
4″ to 8″ Capacity Pipe
