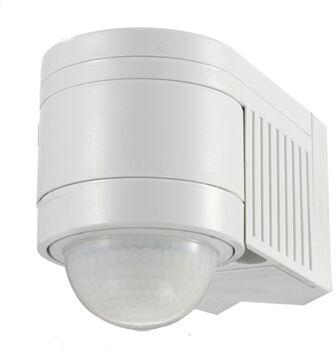

Pir sensor

Installation Height2.2m~6m
Power Consumption0.45W(work) 0.1W(static)
Rated Load110-130V/AC: Max.800W (incandescent lamp) Max.200W (energy-saving lamp) 220-240V/AC: Max.1200W (incandescent lamp) Max.300W (energy-saving lamp)
Power source110-130V/AC 220V-240V/AC
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Installation Height2.2m~6m
Detection Distance2.2m~6mmax.12m(<24°C)
Ambient Light< 3-2000LUX (adjustable)
Detection Range360°
Time-delay10sec±3sec to 30min±2min(adjustable)
Rated Load110-130V/AC: Max.800W (incandescent lamp) Max.200W (energy-saving lamp) 220-240V/AC: Max.1200W (incandescent lamp) Max.300W (energy-saving lamp)
Working Temperature-20~+40°C
Detection Motion speed0.6~1.5m/s
Power Consumption0.45W(work) 0.1W(static)
Power Frequency50/60 Hz
Working Humidity93%RH
Power source110-130V/AC 220V-240V/AC
