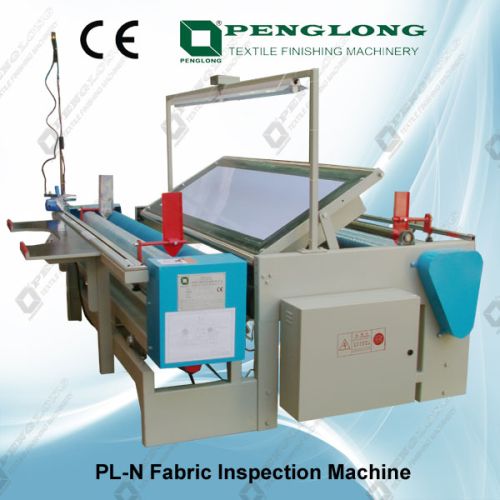

Pl-n Roll To Roll Fabric Inspection Machine Textile

MOQ1 Set(s)
BrandPENGLONG
Speed10~80m/min(adjustable)
Functionroll to roll
FeaturesSmall size and save space
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

BrandPENGLONG
Machine TypeFabric Inspection Machine
FeaturesSmall size and save space
Functionroll to roll
Producttextile machine
QualityLong service life and working long hours without error
Speed10~80m/min(adjustable)
Material CapabilitiesKnitting,tatting and woven fabrics etc
ApplicationGarment Factory
ModelPL-N Roll to Roll Fabric Inspection Machine Textile
Working widthAs per clients requirement

PL-N Roll to Roll Fabric Inspection Machine Textile,Cloth Winding Machine,Knit fabric inspection and rolling machine,Fabric Inspection and Winding Machine, inspection machine, roll inspection machine,winding machine,fabric rolling machine.
-Usage: This PL-N Roll to Roll Fabric Inspection Machine Textile is suitable for inspecing, winding and measuring knitting,tatting,printed,tricot,woven fabrics etc.
-Technical parameters of Machine Textile:
1 Max. Fabric Width 1800mm~2800mm
2 Inspection and Rolling Speed 10~80m/min.(adjustable)
3 Diameter of Winding Cloth ≤600mm
4 Edge-aligning accuracy ≤3mm
5 Measurement Error ≤0.5%
6 Drive Motor and Inverter Power 1HP*2
7 Frequency 50Hz(Customized)
-Characteristics:
1. This PL-N Roll to Roll Fabric Inspection Machine Textile equipped with dual inverter speed controller system.
2. Photoelectric hydraulic edge-alignment system adopted.
3.Accurate in inspecting, the lamp-chemny could be inclined or laid horizontally.
4.Fabric tension in adjustable in accordance with the users need.
-Expanding Roller
-Motor
-Edge sensor
-CE Certificate
