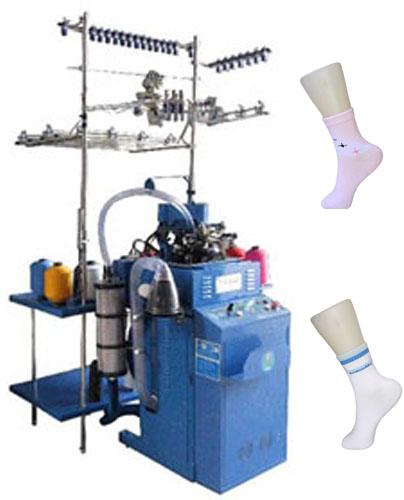

Plain Computeried Sock Knitting Machine 3.5inch

We are offering model No: YX-321 plain socks machine.
Cylinder Diameter 3.5inch
The needle counting 72~220N
Running Speed (RPM) 300~350
Drive Control Servo Drive
Power
Required(kw) Drive Motor 0.85kw
Fan Motor 0.90kw
Control Box 0.80kw
Floor Space 150*110*240
Weight Net Weight 300kg
Gross Weight 320kg
Packing size 76*110*165
Main features:
1.One main feeder plus five pattern feeders
2.Possibility of 6 colors in one course and 16 colors on one sock.
3.Drumless, fully computerized control system.
4.Exclusive inner cam block system for high speed.
5.Stepping motor for elastic yarn and stitch cam control.
6.Electro-pneumatic yarn finger and cam control.
7.Pattern Depth up to 1,500 courses.
8.Multiple stop motion sensors in case of error.
9.Autiomatic re-cycling oiler,counter,and reset function.
10.Equipped with USB for easier data reading
11.Available in 220/380/440V 3phase 50/60Hz.
12.Fully A.C Servo motor adopted.
13.Minimized and easy operating function.
14.battery back-up to protect stored program.
15.Internal UPS can support continuous knitting.
16.Graphic type LCD adopted.
Function add that:
equipped with Newly Developed Powerful Controller,with Multi-Functions.
Adoption of New Actuator System for high speed knitting.
Protecting needle broken by using Newly Designed Needle Detector.
More wide LCD Screen for easily checking knitting conditions.
