Planar Transformer

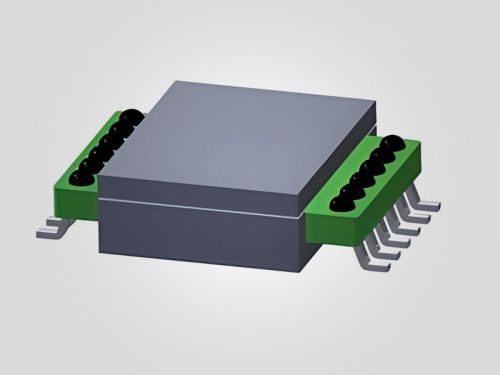

Miracle Electronics’ planar transformer, which breaks from the typical coiled coil topology of conventional transformers, represents a novel approach to transformer construction. It makes use of a flat, geometric winding arrangement instead, which is made feasible by Printed Circuit Board (PCB) technology. This creative design has several benefits in terms of thermal performance, EMI characteristics, and overall power density, in addition to making a transformer that is more space-efficient and compact.
The winding structure of our planar transformer is placed in a two-dimensional flat pattern, which increases the surface area exposed to the environment, and improves heat dissipation. This increased thermal efficiency not only increases the transformer’s total lifespan, but also adds to its dependability. Planar transformers also have a number of benefits, one of which is their small size, which makes them perfect for space-constrained applications like power supply and electronic devices. The lowered weight and size are especially helpful in sectors where effective system integration depends on space optimization. In the field of magnetics, planar technology is essential for meeting the increasing need for intelligent solutions and small-sized components for a range of applications
