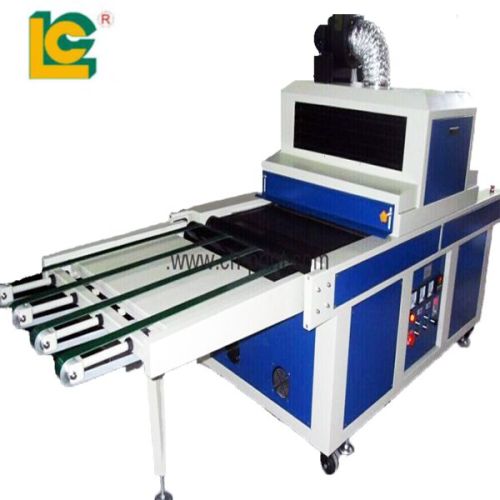

Plane Surface UV Dryer Machine For Printing Ink With Heidelberg Printing Machine Transmit Bridge

₹ 4.10 Lakh / Set

MOQ1 Set(s)
Brand NameLuen Cheong (LC)
CertificationCE Certificate
ConditionNew
Country of Origin380V
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameLuen Cheong (LC)
CertificationCE Certificate
Country of Origin380V
ConditionNew
Total Carbohydrate1 Year
Availability380kg
Wind fan wattage500W/380V
UV Lamp power2PCS*3KW /380V
Motor wattage1000W/1P/380V
Conveyor belt sizeL2200* W500mm
Gross Power23KW
DimensionL*W*H2020*900*1350
After-sales Service ProvidedEngineers Available To Serive Oversea
UV Drying products700*100*2000mm
Total wattage7.5KW
Conveyor speed0~30m/min

Our UV Curing Machine TM-700UVF-B be fit to UV drying , Paper UV PRITNING ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV spraying , paper UV printing, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating energy is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, step-less speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics.

Youtube Channel :

Parameter

Product name	TM-700UVF-B Plane Surface UV dryer machine for printing ink with Heidelberg printing machine transmit bridge
Model No	TM-700UVF-B
Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	Our UV Curing Machine TM-700UVF-B be fit to UV drying , Paper UV PRITNING ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV spraying , paper UV printing, packing products UV drying . UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating energy is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, step-less speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics.
Advantage	1. The conveyer speed can adjustment according to the products drying condition; 2. Conveyer belt mabe by tefulong materials; 3. Famous brand UV lamp installed ; 4. Cooling fan installed on the side to remove the heat in curing chamber; 5. Tabletop working and save room area
Parameter	1. Model NO. TM-700UVF-B 2. UV Drying products---7001002000mm 3. Conveyor belt size---L2000* W500MM 4. UV Lamp power---2PCS3KW /380V 5. Total wattage---7.5KW 6. Wind fan wattage---500W/380V 7. motor wattage---1000W/1P/380V 8. Conveyor speed---0~30m/min 9. Speed change ways---Continue 10. UV Machine Dimension---LWH2020900*1350 11. Weight---380kg
Usage	This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc High Speed UV curing machine
Free fittings	1Set/Sets
customer	USA, UK, Germany, Spain, South Africa, Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc
Delivery time	Within 7 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case/wooden case/ as required
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)
