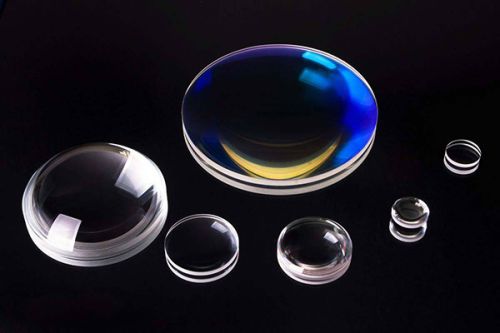

Plano Convex Lens, Brand Name : TC OPTICS

Plano convex lens
these lenses have positive focus length. Most suitable where one conjugate is more than five times, the other. E.g. In sensor application or for use with near collimated light. Also where both conjugates are on the same side of the lens, e.g. As an add-on lens to increase the numerical aperture.
Capacity:
material: optical glass, fused silica lens, silicon, germanium, caf2 plano concave lens, mgf2 plano concave lens, sapphire, znse, zns
diameter: 0.5 to 350 mm
diameter tolerance: +0-0.02 mm
thickness tolerance: ±0.01 mm
surface quality: 10-5
surface figure: λ10
centration: 1 minute or 30 second
coating: uncoated, ar and hr
specification:

material bk7 or fused silica
design wavelength 546.1 nm
design index:
              bk7 1.5183 ± 0.0005
              fused silica 1.46008±0.00005
diameter tolerance +0.00, -0.15 mm
thickness tolerance ±0.2 mm
paraxial focal length ±2%
centration 85%
surface irregularity λ4 632.8 nm
surface quality 60-40 scratch and dig
protective bevel 0.25 mm x 45°
bk7 plano-convex lens standard products:
part no. f (mm) ф(mm) r1 (mm) centration
(arc minutes) t c (mm) t e(mm) f b(mm)
tpx101 4.0 2.0 2.073 15 1.26 1.0 3.2
tpx102 5.0 3.0 2.592 10 1.48 1.0 4.0
tpx103 6.0 4.0 3.101 3 1.50 0.77 5.0
tpx104 8.0 6.0 4.15 3 3.3 2.0 5.8
tpx105 10.0 6.0 5.18 3 3.0 2.0 8.0
tpx106 15.0 12.7 7.78 3 5.3 2.0 11.5
tpx107 20.0 12.7 10.37 3 4.2 2.0 17.2
tpx108 25.4 25.4 13.17 3 11.7 2.0 17.7
tpx109 40.0 12.7 20.73 3 3.0 2.0 38.0
tpx110 50.0 25.4 25.92 3 5.3 2.0 46.5
tpx111 60.0 22.4 31.1 3 4.1 2.0 57.3
tpx112 80.0 30.0 41.46 3 4.8 2.0 76.8
tpx113 100.0 25.4 51.83 3 3.6 2.0 97.6
tpx114 100.0 50.0 51.83 3 9.4 3.0 93.8
tpx115 200 25.4 103.66 3 2.8 2.0 198.2
note: other material, size and coating are available upon request.
