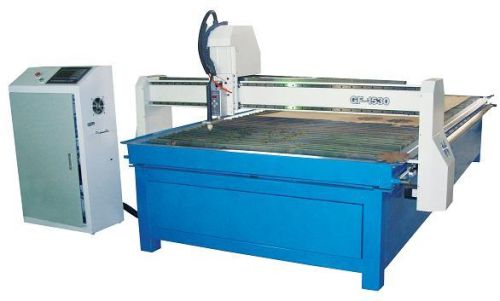

plasma cutting machine
Be made of CNC cutting platform, CNC control system, plasma power
CNC cutting platform:
- The lathe bed Portal type movement structure.
-The lathe bed adpot heavy steel structure to guarntee the machine use in long-term stable and reliable.
- Lathe bed after vibration aging treatment, without deformation.
- Embedded tilted body, convenient to clean cutting dust.
-Transmission system: Adopt Taiwan PMI high precision, zero clearance square model aggravating sliding linear guide rail and high precision rack, gurantee high precision transmission,stable and use in a long-term.
- Adopt Shenzhen Leadshine MA860H high speed subdivided driving system (optional Taiwan or Japanese AC servo motor drive), The machine can ramain stable drive orientation in the high speed movement, get to machine small noise,smooth operation,percision design of high speed advantage.
The high speed movement remain stable driver orientation, realize equipment noise is small, smooth operation, precise design of high speed advantage
Control system(Beijing START ):
- Large-scale gate arrays hardware interpolation device
- Control stepper motor or servo motor
- According with the characteristics of plasma cutting function: automatic arcs
- Delay, preheating, perforation, flame radius compensation, continuous back, breakpoint recovery
- Processing continuous, Do not pause within a procedures section
- All English menu, easy to learn
- Dynamic graphic display, cutting graphic radial, enlargement, narrow, rotating.
- Can support CAD/CAM and all kinds of software.
- Electronic gear regulator, can adapt to all kinds of different machine.
- Adopt the most advanced domestic ARC adusting controller, have the arc of high sensitivity, it can automatic adjustment to select the best cutting distance, in order to ensure that the workpiece precision cutting, avoid rough plank worpiece cause cutting loss.
The system is developed by Beijing START company,specially for the cnc plasma cutting machine to continuous track motion controller, it use industrial embedded computers as hardware platform, stable, reliable, high control accuracy,It is absorb many cutting precious experience, the function is complete and easy operation.
Plasma cutting Power:
Power selection: This machine can choose chengdu huayuan domestic 60 A-100 A economical power, the cut thickness can get to 0.5-12 mm;
High quality type optional imported American Powermax series, cut thickness 0.5-16 mm,and cutting products with high precision.
Processing scope: iron plate, aluminum, titanium plates, stainless steel plate, galvanized steel sheet, white steel plate of conductive metal plate cutting.
Performance parameters:
Molde
Performance GF- 1530 Industrial Plasma Cutting Machine
XYZ axis travel 1500*3000mm
Three axis localed precision +- 0.05mm
Cutting precision +- 0.35mm
Transmission
System X Y AXIS Taiwan AMT high precision, zero clearance square model aggravating sliding linear guide rail + rack
Z AXIS arc voltage adusting controller
Max. cutting speed 15000mm/min
Working voltage AC380/50HZ
Control system Beijing start plasma cutting system + arc voltage adusting controller
Software support FASTCAM,AutoCAD, Jinlin etc. Software
Instruction format G code
Drive system Three phase stepper drive system
(optional Taiwan AC Servo Drive system )
Plasma power Imported America hypertherm series 100A
Power cutting capacity Imported America Powermax series 0.5-16mm
Working atmospheric pressure 0.65-0.7Mpa
Working Voltage AC380V/50HZ
