Plasma Cutting Machine, Brand Name : TC

We are offering portable cnc oxyacetylene fame/plasma cutting machine tc-i.

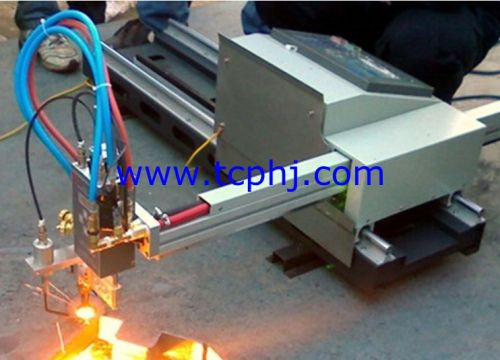

portable cnc plasma cutting machine tc-i
the machine can cut the vast majority of materials and is convenient to use,contacted with a printer.also its maintenance is economical and easy.the cutting machine is equipped with a universal computer which can draw,program and control the cutting procedure.moreover,users are able to buy it without that computer,then the users must use their own computer.
main features:
1. Gapless gear,rack gear,step driver.
2. Linear guide rail coming from taiwan, high precision,stable running.
3. Bottom plate consist of welded square tube and steel flat, high precision base level,anti-rust and durability.
4. Beam being made of aluminium alloy,light weight,no deformation.
5. Self-developed cnc system with top stability and antijamming capability,english operation interface,can change cad graph into cutting code.prepositive usb interface,non-seal graph process,supports common cutting.
6. Beam:linear guide,reduce wear,being able to assure cutting accuracy.
technical indexes:
1. Cutting shape:being able to cut any flat shape steel-metal part composed by line&arc.
2. Cutting precision:national standard jbt10045.3-99.
3. Effective cutting width:0~1200mm.
4. Effective cutting length:0~3000mm.
5. Drive mode:single drive.
6. Torch:standard 1 set(flameplasma), torch quantity can be tailored.
7. Cutting thickness:flame:maximum:200mm,plasma: depends on plasma source.
8. Ignition&thc:autoignition,electric torch height controller.
9. Cnc syetem:lansun iii self-developed, easy-to-use, reliable performance.
10. Nc programming:full-automatic graphical programming software based on autocad.
11. Cutting gas:oxygen+acetylenepropane.
12.file transfer:cable, wireless network or usb.
13.running control mode:computer control,handle-held wireless remote controller.
14.input voltage:220v380v,110v460 universal.
15.option:for flame cutting ,autoignition and capacitance height control; for plasma cutting,hypertherm pmx10001250.
