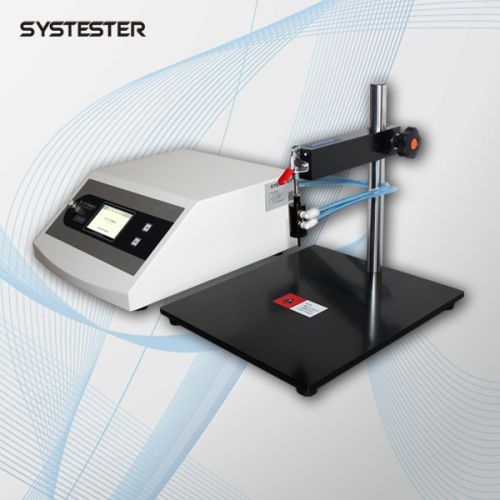

Plastic Anti-theft Bottle Cap Seal Strength tester,PKG-1201 Supplier

Application
for determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates.for the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.
features
1. Our own patent technology.
2. Touch screen operation.
3. Real color tft lcd display.
4. Result, curve display.
5. High speed sampling for test accuracy warranty.
6. With and without restraining plates test is available.
9. Burst, standard creep, creep-to-burst test.
10. Over pressure protection.
11. Low power consumption.
12. Rs232 communication port.
13. Professional computer software support.(optional)
technical indexes
testing range:
0-250kpa
0-800kpa
0-1600kpa
gas source: 0.4mpa ~ 1.1mpa
unit dimension: 345mm*410 mm*170mm
package fixture size: 300 mm*350mm*330mm
power supply: ac 220v 50hz
net weight: 25kg
standards
gb 18454,gb 19741, gb 10440,gb 17447,astm f2054,astm f1140,iso 11607-1,iso 11607-2,gbt 17876, gbt 10004,gbt 10005,bbt 0003,bbt 0025,qbt 1871,ybb 00162002,ybb 00252005
configuration
delivery: mainframe, package test fixture. Micro-printer
optional: professional computer software, restraining plates, open package test fixture, bottle cap test fixture, hose test fixture.
