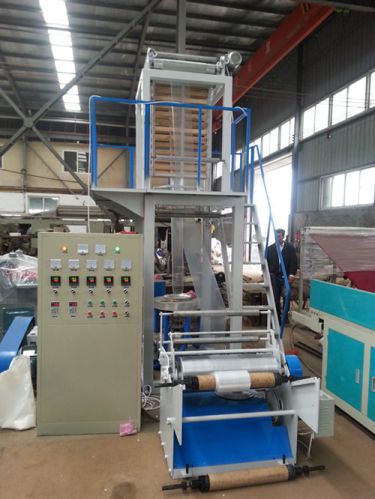

PE Plastic Film Blowing Machine

We are offering Plastic Film Blowing Machine.
Specification:
1>.Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrogen and processed in a precision way, hence it is sound in hardness, durable in corrosion resistance.
2>.The specially designed screw is of sound quality in plasticizing which helps increase the production capacity.
3>.It is applied to blowing the plastic films like ldpe, hdpe, lldpe,
4>.It is widely applied to producing the packing bags for foodstuff, clothing rubbish, vest ones, and industrial packaging and etc.
5>.The machine body is channel steel frame with single rolling friction, which is suitable for blowing high-low pressure PE industrial film and agricultural mulch film.
Main specification of machine:
1. Raw Material: HDPE,LDPE,LLDPE
2. Screw Diameter: 50mm
3. LD ratio: 28:1
4. Lay flat width of film: 100-600mm
5. Thickness : 0.008mm-0.1mm tolerance: ≤（±5%）
6. Production capacity: 30kgh (according to material, width and thickness of film)
7. Take-up speed: 10-60mmin
8. Power supply: 380v, 50Hz 3 Phase11kw
9. Heater material: cast aluminum and stainless steel
10.Machine dimension(L*W*H): 4500*2500*3800mm
11. Weight: 2T
