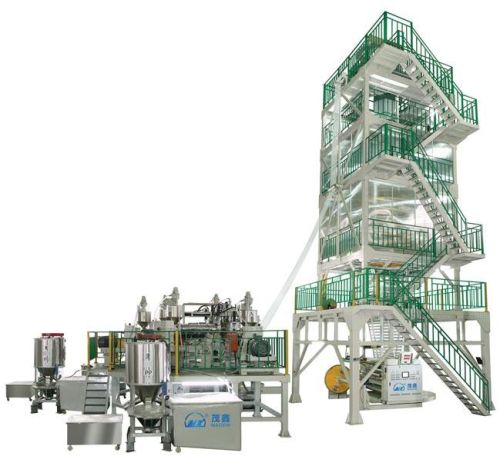

Plastic Film Blowing Machine

We are offering plastic film blowing machine, 3-5 layer co-extrusion heat shrink film blowing machine line
product usage: can used to be packed regular and irregular shape products. Such as automotive products, plastic products, stationery, books, electronics, circuit board, mp3, vcd, crafts, photo frames and other wood products, toys, pesticides, daily necessities, food, cosmetics, canned beverages, dairy, pharmaceutical, cassette and videotapes and other products.
The pof hot shrink film blowing machine adopts multi-layer(five layer, three layer) co-extrusion type. The film tube downward blowing and get though gauge system and fixing shape water ring,and then blow up secondary. The heating furnace adopts imported infrared ceramic heater. The temperature controlling system adopts proportional control system, which can automatic test environmental temperature and adjust the heating temperature ratio, to reach the character of heating fast and high precision in controlling temperature. The machine is controlled by computer with two touch screens which are convenient for operating. The machine can speed up on line to reduce the waste of changing film specification and re-blowing so that increase yield. The machine equip with infrared gauge system on line to increase the thickness precision.
Main technical parameters：(design and specifications are subject to change without notice.)
model mx-pof-5c mx-pof-3c
screw diameter φ70 φ70 φ70 φ70 φ70 φ65 φ90 φ65
screw ld 30:1 30:1
screw rotating speed 70rmin 70rmin
max output 360kgh 360kgh
mainframe power 37kw 37kw 37kw 37kw 37kw 30kw 75kw 37kw
film thickness 12μm-35μm 12μm-35μm
film max folded diameter 2200mm 1600-2200mm
total power 435kw 435kw
weight 65t 58t
size 13.6x9.8x17m 13.6x6x16.7m
