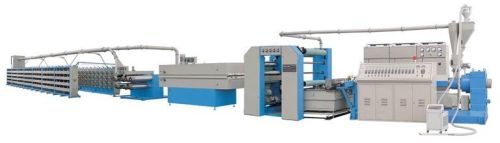

Plastic Film Extruder Machine For Woven Bag

Plastic film extruder machine for woven bag
sjpl-z10030-1100192 series tape production line
on the basis of absorbing foreigh advanced technology.plastic extruding flat film stretching line is used by micro-processor control frequency conversion and silicone controlled dc etc.the main parts use foreign quality products.the line on large ld ratio and mixing smelt section on the extruder screw for which is specially parts using quality steel,for the filter changing system we apply advanced foreign automatic filter changing structure.the heating board is changed into advanced stretching hot air oven and principal technical index of the line reach international advanced level.the line has the performance of high speed.top yield,low energy consumption.,good forming quality of the fiber dru.the structure of the line is compact with a pleasing appearance smooth running,flexible and reliable control sophisticated engineerinf,convenient operation and reliable production.it can be used in many aspects.especially in various flat fiber foring conversions of thermoplastic.such as pp, hdpe, lldpe,etc.
Main technical variables
model sjpl-z10030-1100192
max extrusion output 350kgh
motor power of extruder 75kw
diameter of screw 100mm
ld ratio of screw 33�1
revolution of screw 20-120rmin
width of die-lip 1100mm
stretching ratio 4-10
yarn specification 60-200tex
max winding speed 280mmin
number of winder 192spindles
system installed capacity 305kw
normal operational capacity about 190kw
weight 30000kg
overall dimension(l*w*h) 35000ã�3700ã�2600
