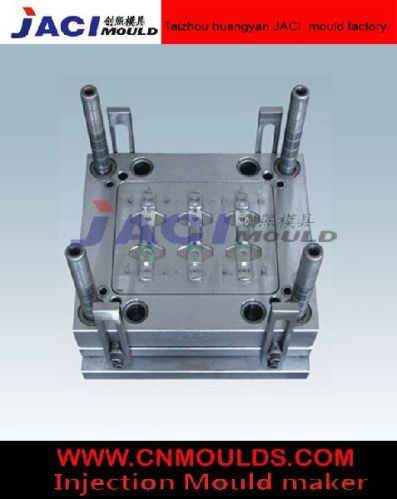

Plastic Injection Cap Mould

We are offering plastic injection cap mould. Cap mould
jaci mould specialized in designing and manufacturing plastic mould for cap mould
cap mould -optimal cooling system to get he fast cycle time.
-the spare part of each mould will be inserted with durable parts,which can be interchangeable conveniently.
-core,cavity using imported steel s136,the hardness is hrc48-50 after heating treatment,each cavity self-locks independently to ensurelow decent ration and precision of the products, and the cavity can be interchangeable with each other.
product name:flip top cap mould
mould cavity:4 cavities
mould size:496*446*480mm
suitable machine:200t haitian machine
mould material:din1.2083harden to 45-52hrc
mould base:lkm2312
mould life:5m
runner system:4points yudo hot runner point gate
ejection system:stirpper plate
mould running:ejection automatic flip top close,fully automatic drop
injection cycle time:10seconds
delivery time:45days
the country of mould'client:portugal
