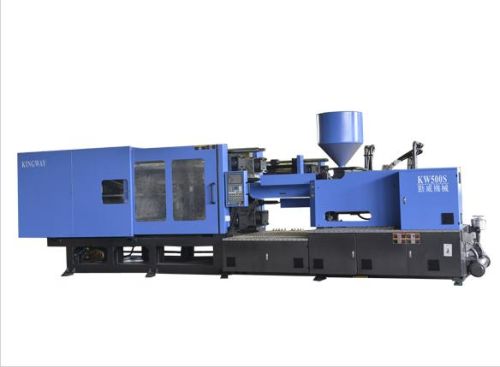

Plastic injection moulding machine, Brand Name : KINGWAY

Kw series plastic injection molding machine focuses on universal plastic products processing. We can make to order adding special configuration in order to fulfill variety plastic injection technique requirements.
injection molding machine property:
injection unit: high stability, accuracy and high repeatability precise.
Clamping unit: high rigidity and high precision.
Hydraulic control system: high precision and fast response.
ningbo kingway machinery co., ltd
technical parameter
item unit model kw500
injection unit
screw type a b c d
screw diameter mm 75 80 85 90
shot volume(theoritical) cm3 1727 1965 2219 2487
injection weight (ps) g 1554 1768 1997 2238
injection rate gs 386 442 499 560
injection pressure mpa 167 147 130 116
screw rotation speed r.p.m 130
clamping unit
clamping force kn 5000
open stroke mm 770
space between tie bars(w*h) mm 820*780
max. Mould height mm 810
min. Mould height mm 330
ejector stroke mm 200
ejector force kn 150
others
max. Pump pressure mpa 14
pump motor power kw 55
heating power kw 33.5
machine dimension�l*w*h) m 8.5*2.2*2.8
machine weight t 22.
