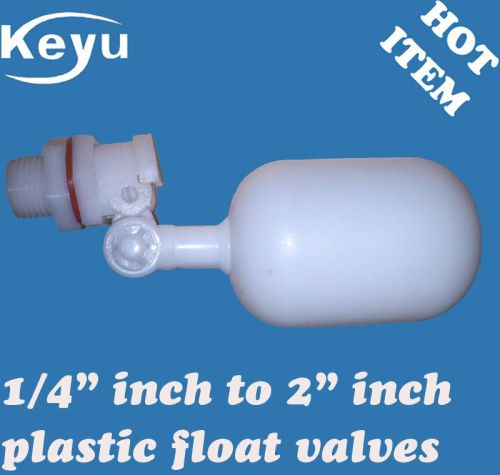

Plastic Mini Float Valve, Brand Name : KEYU, Packaging Type : AMBER

We are offering Plastic Mini Float Valve.
Features:
mini float valve
length within 9.5cm
body material
pom
ball material
pe
core material
sr
working water pressure
0.1-1.2mpa
working temperature
0 to 70 c
item no.
dn8wk
float valve works :
plastic mini float valve is a device which can be used to control the level of a fluid in a tank by opening and closing a valve in response to changes in the fluid level. One of the most famous examples of a float valve is found in the ballcock found in toilets around the world, but these valves are used in a number of applications. Many hardware stores stock float valves of various sizes and designs, and enterprising people can also make their own with objects lying around the house.
the basic float valve includes a balloon float, an air-filled float which is sealed so that water cannot enter, attached to an arm. When the water level is low, the float hangs, keeping the valve open. As the water level rises, the float starts to float on the surface as a result of buoyancy, causing the arm to move, and eventually pulling the valve closed so that water will stop flowing. This process is entirely mechanical, requiring no human input.
usage span:
◦accurate and repeatable level control
◦on-off or non-modulating action
◦fully adjustable high and low level settings
◦simple design, proven reliable
◦easy installation and maintenance
◦for reliable control of liquid levels in storage tanks, irrigation, air conditioning, livestock watering, oem applications, wherever liquid levels must be controlled.
