JACI mould Specialized in designing and manufacturing plastic mould for cap mould.
cap mould -optimal cooling system to get he fast cycle time.
-the spare part of each mould will be inserted with durable parts,which can be interchangeable conveniently.
-core,cavity using imported steel S136,the hardness is HRC48-50 after heating treatment,each cavity self-locks independently to ensurelow decent ration and precision of the products, and the cavity can be interchangeable with each other.

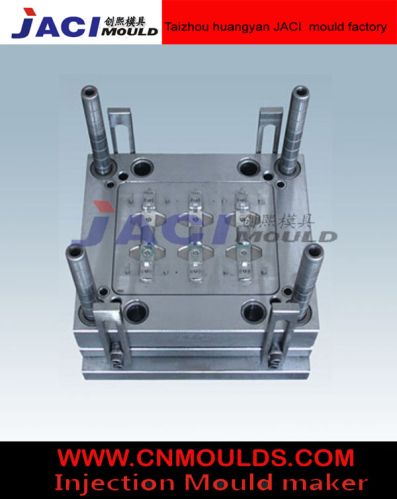

Product Name:Flip Top Cap mould
Mould Cavity:4 cavities
Mould Size:496*446*480mm
Suitable machine:200T Haitian machine
Mould material:DIN1.2083harden to 45-52HRC
Mould base:LKM2312
Mould life:5M
Runner system:4points Yudo hot runner point gate
Ejection system:stirpper plate
Mould running:Ejection automatic flip top close,fully automatic drop
Injection cycle time:10seconds
Delivery time:45days
The country of mould'client:Portugal
