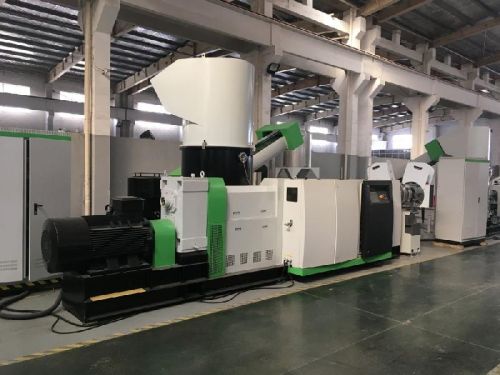

Contact SupplierWe make sure that the products that we deliver will remain completely damage free as we make use of the quality packaging material and have skilled personnel for the packing of the products. Our products are the most sought after in the market, as they are specifically made as per global and domestic quality managements systems. The MT series compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step, applied in the plastics recycling and pelletizing process. ACS system is a reliable and efficiency solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing. Final productions produced by MT system are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc.
| Model Name | MT series |
|---|---|
| Recycling Material | HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS |
| Final Product Shape | Pellets/ Granules |
| System Composition | Belt conveyor, cutting compactor, single screw extruder, pelletizing device, water cooling unit, dewatering section, conveying blower and production silo |
| Output Range | 160kg/h-1200kg/h |
| Feeding Device | Belt conveyor (standard), Rolls hauling off device (Optional) |
| Compactor Volume | 300 Liters-1400 Liters |
| Screw Diameter | 80mm-180mm (standard) |
| Screw material | 38CrMoAlA nitride steel( SACM-645), bimetallic ( Optional) |
| Screw L/D | 31/1, 32/1, 34/1, 36/1 (depending on features of recycles) |
| Barrel's Heating | Ceramic heater or Casting Aluminum heater |
| Barrel's Cooling | Air cooling through fan blowers |
| Vacuum Degassing | Double vented degassing (Standard) |
| Pelletizing Type | Water ring die-face hot pelletizing |
| Voltage Standard | Depending on project's location |
| Optional Devices | Metal detector, rolls hauling off device, micro feeder for masterbatch, additives, chiller, etc. |
| Delivery Time | 60 days after order takes effect. |
| Warranty | 13 months since date of bill of lading |
| Technical Service | Project design, suggestion on factory construction, installation and commissioning |
