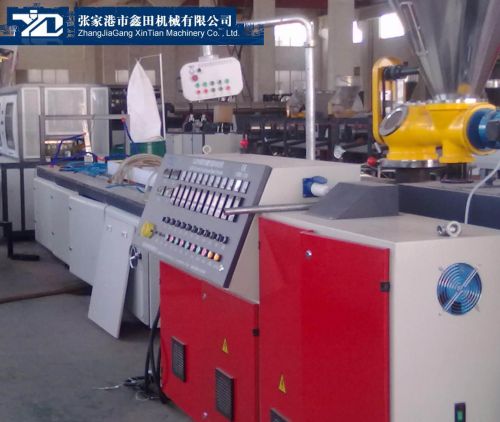

Plastic Profile Production Line

We offer pvc profile process flow:
raw material----conical twin-screw extruder---profile extrusion mould---cool molding die---vacuum calibration support----cutter---stacker---finished product inspecting and packing.
SPECIFICATION AND PARAMETERS:
1. SJZ65/132 Conical Double-Screw Extruder
Screw,Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding,
Surface Chrome plate,
Nitriding Layer Thickness:0.5~0.7mm,
Surface Rigidity:800~900HV
Screw Diameter: Φ65/132mm
Effectual Working Length of Screw:1430mm
Speed of Screw: 1~35rpm
Reducer Gearbox:JC Gearbox
Main Motor Power: 37KW Siemens Motor
Force Feeder Motor Power: 0.75KW
Barrel Heating Method: Foundry Aluminum Heater, include force cooling fan(SOK)
Barrel Heating Power:24KW
Capacity:200~250kg/h
Vacuum exhaust system:Adopt 2.2KW water loop vacuum pump, contain pressure box
Assistant Equipment: Screw interior oil temperature adjusting equipment set
Join part install Xiaogan WUYUE High-Temperature Melt
Material Pressure Sensor
2. YF240 Vacuum Calibration Table
Calibration Table Length :6 Meter
Calibration Table Width:1000mm
Vacuum Pump:5.5KW×2pcs
Water Pump:3KW×1pc,2.2KW×1PC
Vacuum & Water Tie-in:Vacuum Tie-in=20pcs,Cooling Water Tie-in=20pcs
Vortex Gas Pump Power: 0.75KW(for wind drying)
Mould Install Rail:Adopt High Quality Aluminum Profile have T Groove
Mould Install Rail Center Distance: 320mm
Distance of from Aluminum Rail to Floor: 900±40mm
Table fore-and-aft Move:Adopt 1.5KW Gearbox Speed Reducer Motor,
Adjusting Distance equal to 800mm
Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting
Right-and-left adjusting adopt screw adjusting
Table Flume Balance adjusting adopt worm reducer & screw
adjusting
3. Haul-off
Haul-off Bracket Length: 1800mm
Haul-off Motor Power:1.5KW×2pcs
Haul-off Speed :0.5~6 meter/min
4. Cutting machine
Maximum Cut Profile Size:240×100mm
Saw Diameter:Φ400mm
Cut Motor Power:2.2KW
Bracket Lengthways Move Distance:600mm
Sawdust Absorb Vortex Fan:0.75KW
5. Stacker
Stacker Length:5 Meter
Laying Board Material:0.8mm Stainless Steel Board
Stacking Mode:Stacking by Gas Cylinder,
Adopt Limited Switch Send out Cutting Signal
