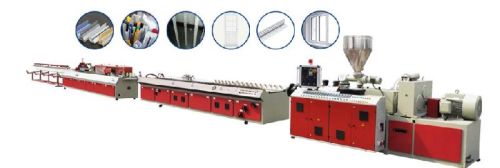

Plastic Profiles Extrusion Line

Plastic extrusion profile production line is mainly used for the production of plastic doors and windows profiles, plastic decorative sheet, PVC foam profiles and other plastic products.
Plastic profile extrusion process according to the co-extruded material molding state can be divided into two types of co-extrusion and post-co-extrusion. Pre-co-extrusion refers to the two materials in the process of incomplete molding to achieve composite molding; after co-extrusion is a material has been fully formed, and then another material to achieve composite molding. The advantage of post-co-extrusion is the ability to use waste, the economy is better.
Auxiliary various types         SY120 small profile SY240 type of ordinary type SY240 quasi-high speed SY240A high speed type
Maximum vacuumMps -0.096 -0.096 -0.096 -0.0096
Number of vacuum connectors 30 30 40 40
Effective length of styling table 3000 4000                   40005000                  60008000
Largest tractionKN 20 30 40 40
Maximum traction speed m.min -1 8 3 5 5
Crawler widthmm 200 240 240 240
Effective length of track mm 1600 1800 2250 2400
Water consumption m 2.5 4 5 6
Gas consumptionm 3.h-1 8 10 12 15
Total power kw 24.3 27 33.5 34.7
Dimensions m × m × m 15100 × 860 × 1400 13500 × 1045 × 1760 16385 × 1465 × 2127 18750 × 1465 × 2130
17135 × 1465 × 2127 19410 × 1645 × 2130
