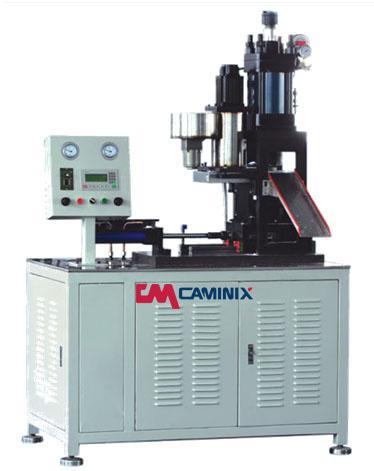

Plastic PTFE Polymer Molding Machine

Applicable scope ptfe products
feeding method stainless steel segmented two material bucket, movable mold feeding with time control
discharge method cylinder pop out, blowing discharge or cylinder push, as per different products
control method touch screen, plc
cylinder model main cylinder double heads, stoke adjustable, second cylinder inlet buffer cylinder, as per different products
cylinder control solenoid valve, pressure reducing valve
position control mechanical and close limit switch
cooling method oil water heat exchange condenser
servo scraper system use the servo motor simulated manual scraping ,make sure the correct feeding
mould quick clamping floating mould installation, no need centralize again it can quick change the mould, use the fast fixture, the machine can use 0.01mm high precision match mould to produce the prefect products without any burr and peeling , so no need to remove the burrs and it save a lot of work and cost
shaking type feeding materials realize the narrow products quick feeding
auto reverse pressure function solve the problem of different height products up and down pressure different, element the possibility of taper problem
touch screen control easy operation, adjustable and convenient
double speed control system pressing cylinder double speed adjustable can realize the cylinder quick movement of empty running , the pressing cylinder slowly movement make sure the products ellipse degree and density meet the requirements
full closed machine the full closed machine, more beautiful appearance, reduce the second contaminated for the raw materials.
