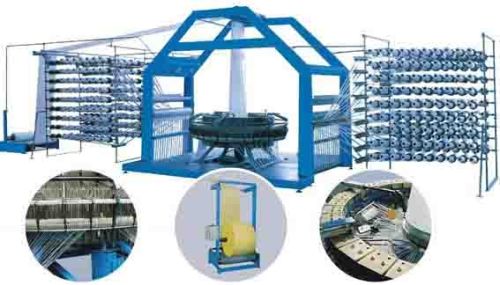

Plastic Woven Vegetable Sack Making Machine

We are offering pp/ pe plastic woven vegetable sack making machine
small cam 6 shuttle circular loom
1ã£ï¿½ï¿½small cam and connecting rolling wheel transmission which is the most advanced technology is adoptedã¯â¼ï¿½making it easy and stable to run.
2ã£ï¿½ï¿½rolling transmission is adopted in entire structure instead of slide block and slide rod,which doesnã¢ï¿½ï¿½t need lubricant and decreases the wearing part.
3ã£ï¿½ï¿½base band belt from italy is used,which is durable and will not break or be stretched.
4ã£ï¿½ï¿½it can be configured with automatically stop detecting unit when meeting the situation of warpweft breakingã£ï¿½ï¿½weft ending.the stoppage unit is sensitive and reliable.
5ã£ï¿½ï¿½plc centralized control is adopted for electric controlling,as well,frequency speed regulation which is convenient and stable.
6ã£ï¿½ï¿½it is high-efficient and energy economical.the highest rotation speed of the main motor can reach 180rmin and the power is 3kw.which can save 10 thousand degree electricity compared with the traditional small-sized six shuttle circular loom whose power is 4kw.
Main technical parameter
model s-yzj-15006s
number of shuttle 6
weaving folding width 950-1500
max.number of warp 8401680
revolution of main motor 90-120rmin
production capacity 1.3-1.8mmin
power of main motor 45.5kw
total power 4.56kw
weight(about) 3800kg
overall dimension(l*w*h) 12000�2800�3200mm
