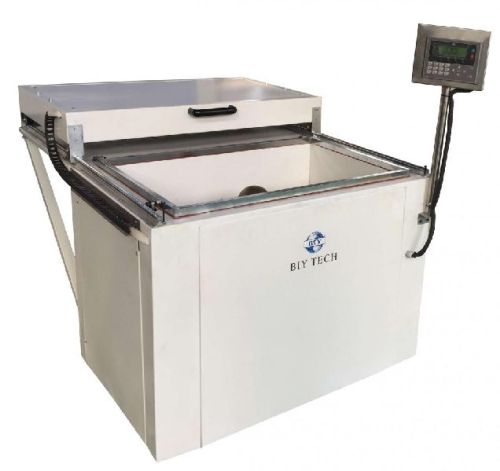

Plastics Thermoforming Machine For ABS

Biy plastics thermoforming machine , therm-formed components can be used in place of complex fabricated sheet metal,fiberglass, or plastic injection molding.  typical industry examples include kiosks and automated teller machines , enclosures for medical imaging and diagnostic equipment such as magnetic resonance imaging(mri) machines, engine covers in a truck cab, and railcar interior trim and seat components. Vacuum formers are also often used by hobbyists, for applications such as rc cars and masks. Such as acrylic sheet forming used in the out-door in-door sign making. 1. Vacuum material:  material max thickness(mm)/(in) 1.acrylic sheets(pmma) 1.2-5mm/3/64-13/64" 2. Abs 1.0-6mm/3/64-15/64" 3.  pvc 1.0-5mm/3/64-13/64" 4 .  pet 0.5-5mm/1/64-13/64" 5.  poly styrene 0.5-5mm/1/64-13/64" 6.  kydex 1.2-5mm/3/64-13/64" 7.  poly propylene 1.2-5mm/3/64-13/64" 8.  other plastic 1.2-5mm/3/64-13/64" 2. Working principle:carry materials by hand → clamp the materials → move the material into the oven, after the material to soft →take the material to forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.3. Basic units:    1). Heater adopts infrared ray heating system.       2). Heater drives by cylinder to insure heater work fleetly and placidly.       3).
