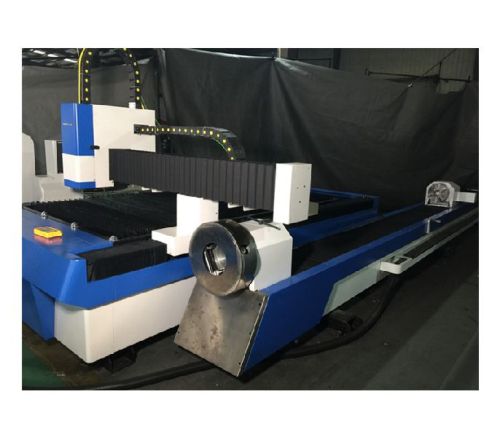

Plate and Pipe Integrated Fiber Laser Cutting Machine

Get Latest Price

ElectricityAC380V/50HZ/100A
Max speed60m/min
Driving wayRack and pinion
Max accelerated speed0.8G
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

WUHAN RENDE KUNJU TECHNOLOGY CO LIMITED

WUHAN

View Number

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 1999

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Pipe/Tube KindRound/Square
Control systemFSCUT2000
Max speed60m/min
Machine weight1500KGS/2000KGS/4000KGS
Max accelerated speed0.8G
Feeding wayAuto feeding
Working area3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Pipe diameter range15mm-160mm
Cooling wayConstant water cooling
Driving wayRack and pinion
Max Cutting thickness5mm/8mm/10mm/15mm (carbon steel)
Machine size5000mm*2600mm*1850mm 6000mm*3100mm*1850mm 8200mm*3200mm*1850mm
ModelRDKJP-3015/4020/6020-500/800/1000/1500
Min. Line width≤0.12mm (depend on material)
Positioning accuracy±0.03mm/1000mm
ElectricityAC380V/50HZ/100A
Repeated positioning accuracy±0.03mm/1000mm
Laser Power500W/800W/1000W/1500W

This fiber laser cutting machine is used for cutting the metal plate and metal tube or metal pipe, it has been widely applied in the industry of sheet metal, decoration, advertisement etc. It can cut the metal material like the carbon steel, stainless steel, galvanized sheet and so on.
